Chassis Dell M1000e with 4x M630 2x2.5" (2xE5-2630 v3, 32GB, H730, x480GB SSD SATA 2.5", 4x10GbE)
The set includes:

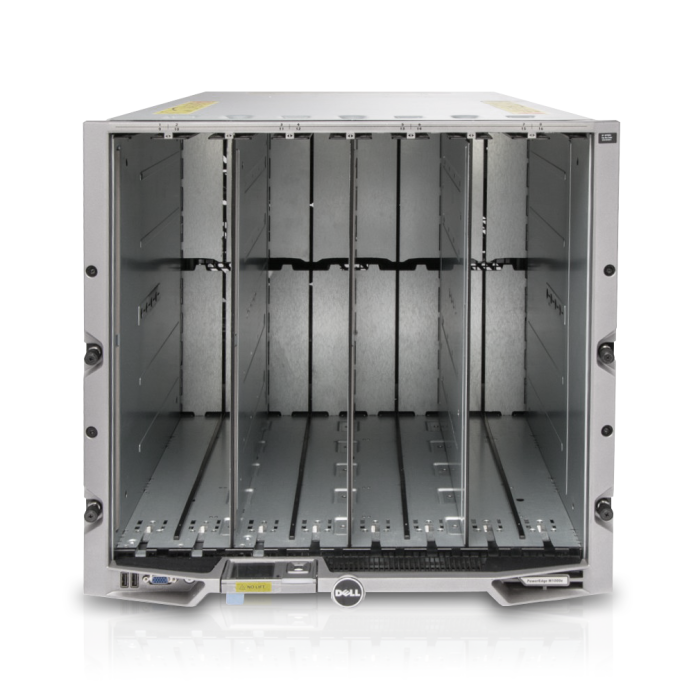

- 1x Chassis Dell PowerEdge M1000e with 9xFAN, 2xCMC, 6xPSU, iKVM, rails
- 4x Dell M630 2x2.5" server platform
- 8x Intel Xeon E5-2630 v3 8-core 2.4GHz 20MB 85W SR206 processor
- 8x RAM 16GB 2133MHz DDR4 RDIMM
- 8x 480GB SSD SATA 2.5" hard drive
- 8x Dell M-Series 2.5" drive tray
- 4x Dell Perc H730 RAID controller
Technical information about Dell PowerEdge M1000e
- Server height: 10U
- Server depth: 76cm
- Maximum server weight: 180kg
- Maximum number of power supplies: 6
- Supported power supplies: 1100W, 1600W or 2000W
Technical information about Dell PowerEdge M630 server
- Server height: 5cm
- Server depth: 55cm
- Maximum server weight: 7kg
- Enclosure types: 2x2.5" or 4x1.8"
- Number of processors: maximum 2 x CPU socket R 2011 E5-26xx v3/v4 (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 22-core / 44-thread CPU total 44-core / 88-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x64GB DDR4 RDIMMs up to 768GB
- Maximum disk size: 2x2.5" or 4x1.8"
- Motherboard chipset: Intel C610
- Number of USB ports: 2x on the front
- Number of PCI-E slots: up to 2x PCI-E
- Supported internal RAID controllers: PERC S130 (software RAID controller), PERC H330, PERC H730, PERC H730P
Available servers
Dell PowerEdge M520 half-width server- support for up to 2x 8-core processors, 12x DDR3 RAM up to 192GB, up to 2 2.5" hard drives
Dell PowerEdge M610 half-width server- support for up to 2x 6-core processors, 12x DDR3 RAM up to 192GB, up to 2 2.5" hard drives
Dell PowerEdge M620 half-width server- support for up to 2x 12-core processors, 24x DDR3 RAM up to 1.5TB, up to 2 2.5" hard drives
Dell PowerEdge M630 half-width server- support for up to 2x 22-core processors, 24x DDR4 RAM up to 3TB, up to 2 2.5" hard drives or 8 1.8" hard drives
Dell PowerEdge M710 full width server- support for up to 2x 6-core processors, 18x DDR3 RAM up to 288GB, up to 4 2.5" hard drives
Dell PowerEdge M910 full width server- support for up to 4x 10-core processors, 32x DDR3 RAM up to 1TB, up to 2 2.5" hard drives
When you buy this server from Hardware Direct, you can be sure that:
- You are buying a server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver replacement hardware to you. Please see the corresponding tab for more details.
You are welcome to inspect the equipment before purchase at our company's headquarters. The equipment is available in our warehouse. We only need time to prepare it for release or shipment.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge M1000e |
| Core Count | 8 |
| CPU Cores | 64 |
| Suma mocy zasilaczy | 14160 W |
| Single CPU PassMark score | 10277 |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 8 |
| Maksymalna ilość procesorów | 2 |
| Ilość wątków | 128 |
| Ilość wątków w procesorze | 16 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 85 W |
| Ilość zainstalowanych zasilaczy | 6 |
| RAM Capacity | 128 GB |
