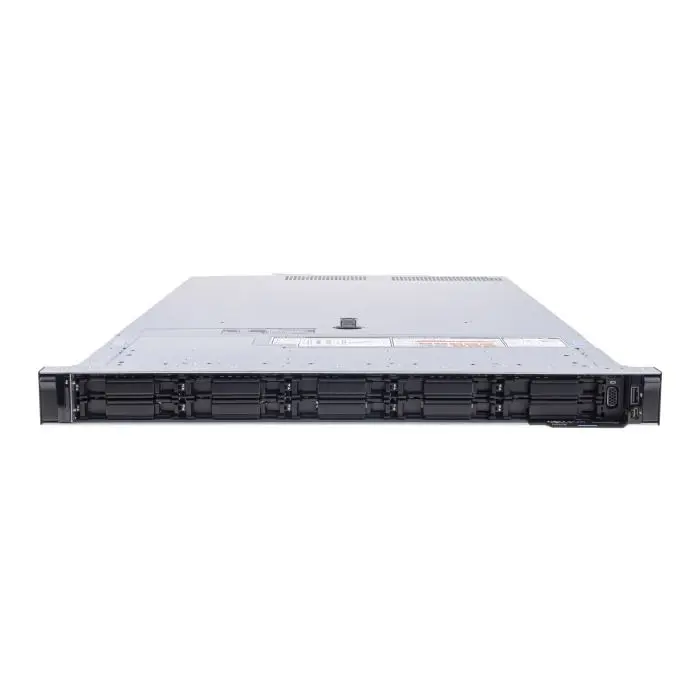

Server Dell PowerEdge R6515 10x2.5" with 1x EPYC 7543, 32GB RAM, H730P, 2x 960GB SSD SATA 2.5", 2x1GbE RJ45, 2x PSU, rails, iDRAC 9
Manufacturer: Dell
PN: R6515-10x2.5-1x7543-32GB-H730P-V01
Loading...
Calculating delivery time...In stock: 3
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R6515 10x2.5" server platform
- 1x AMD EPYC 7543 32-core 2.8GHz 256MB 225W 100-000000345 processor
- 2x RAM 16GB 3200MHz RDIMM DDR4
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell PERC H730P 2GB Mini mono RAID controller
- 1x Dell PowerEdge R6415/R6515 10x2.5" SAS cable
- 1x NVMe cable
- 1x Dell 2x1GbE RJ45 NDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the R6515 server model line.
- Server height: 1U
- Server depth: 74cm
- Server weight: 22kg
- Chassis types: 10x2.5", 8x2.5", 4x3.5"
- Number of processors: maximum 1x CPU 2nd or 3nd AMD EPYC processor
- Maximum number of CPU cores: 1x 64-core / 128-thread CPU
- Number of RAM banks: 16 DDR4
- Maximum RAM size: 16x128GB DDR4 RDIMM total 2TB
- Number of drive bays: 10x2.5", 8x2.5", 4x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 2x PCIe ( 1xPCIe Gen3, 1xPCIe Gen3 + 1xOCP)
- Maximum number of power supplies: 2
- Supported power supplies: 550W
- Remote management: iDRAC 9
- Supported internal RAID controllers: HBA330, H330, H730P, H740P, H840 and S150
Optional accessories for the R6515 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
Attention!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R6515 10x2.5" |
| Core Count | 32 |
| Number of 1GbE RJ45 ports | 2 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| CPU Cores | 32 |
| Suma mocy zasilaczy | 1200 W |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 1 |
| Maksymalna ilość procesorów | 1 |
| Ilość wątków | 64 |
| Ilość wątków w procesorze | 64 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 225 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| Głębokość serwera | 0 mm |
| RAM Capacity | 0 |
