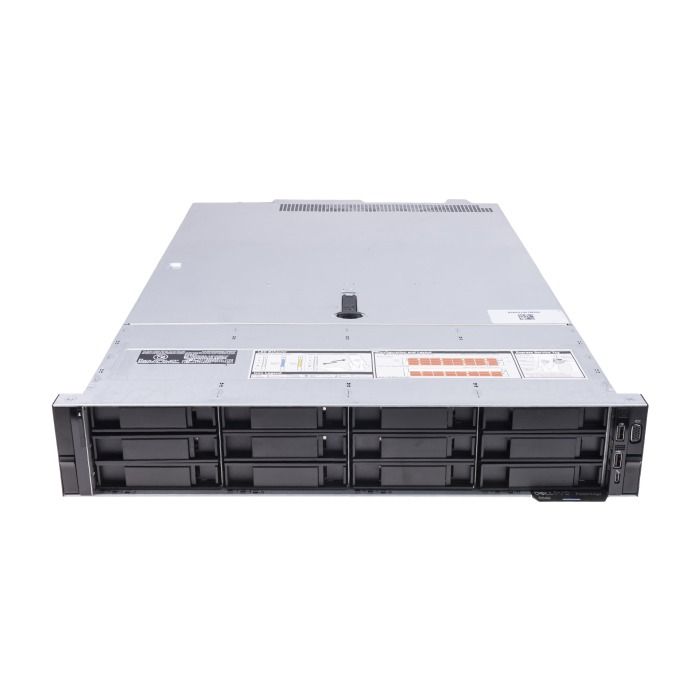

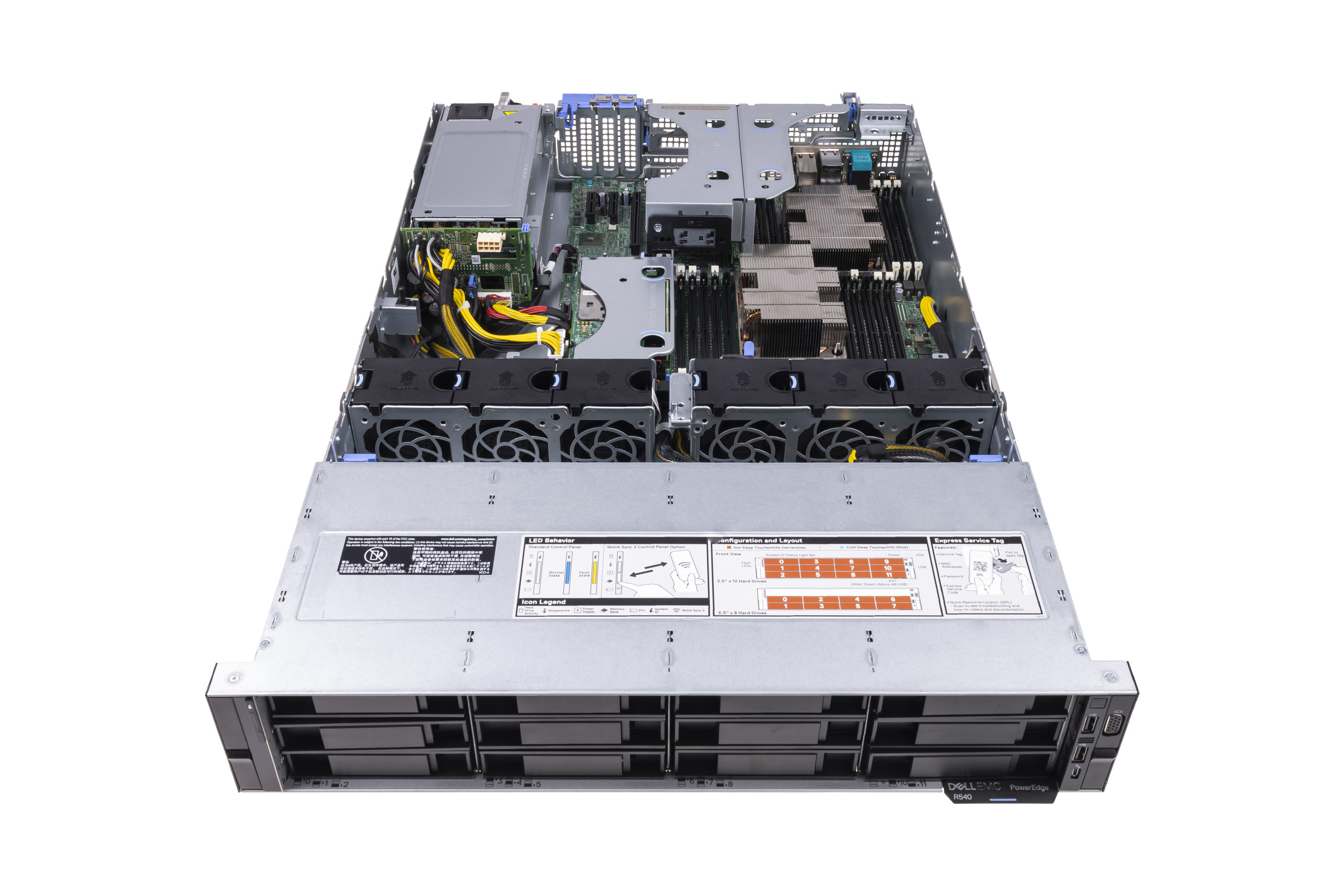

Server Dell PowerEdge R540 12x3.5" + 2x3.5" with 2x Silver 4114, 32GB RAM, H730p, 2x 480GB SSD SATA 2.5", 2x1GbE, 2x PSU 750W, rails, iDRAC9 Enterprise
Manufacturer: Dell
PN: R540-12x3.5-2x4114-32GB-H730P-V03
Loading...
Calculating delivery time...In stock: 6
Warranty: 36 months with the possibility of extension
- 2x Intel Xeon Silver 4114 10-core 2.2GHz 13.75MB 85W SR3GK processor
- 2x RAM 16GB 2400MHz DDR4 RDIMM
- 2x Hard drive 480GB SSD SATA 6G RI 2.5"
- 2x 3.5" drive tray
- 1x Dell H730P 2GB Adapter RAID controller
- 2x Dell power supply unit 750W 100-240V AC 80+ Platinum
- 1x Dell B4 2U rails kit
- 1x Dell PowerEdge R540 12x3.5" SAS cable
- 1x iDRAC 9 Enterprise
- 2x Dell adapter for 2.5" drive to 3.5" tray
Technical information about the Dell PowerEdge R540 server
- Server height: 2U
- Server depth: 71cm
- Server weight: 30kg
- Number of processors: 8x3.5", 12x3.5" or 12x3.5" + 2x3.5"
- Number of processors:maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 26-core / 52-thread CPU total 52-core / 104-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 16x128GB DDR4 RDIMM total 2TB
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: 6x PCI-E gen 3 (6x PCI-E x16)
- Network ports on the board: 2x1GbE
- Maximum number of power supplies: 2
- Supported power supplies: 495W, 750W or 1100W
- Remote management: iDRAC 9
- Supported internal RAID controllers:: H330, PERC H730P, PERC H740P, HBA330, S140, H750, H350, and BOSS cards
Optional accessories for the R640 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Compatible with | PowerEdge R540 12x3.5", PowerEdge R540 12x3.5" (+2x3.5) |
| Condition | Refurbished |
| Core Count | 10 |
| Number of 1GbE RJ45 ports | 2 |
| Amount of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Amount of 16Gb FC ports | 0 |
| Suma mocy zasilaczy | 1500 W |
| Single CPU PassMark score | 13169 |
| CPU Base Frequency | 2.2 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Total of CPU Threads | 40 |
| Ilość wątków w procesorze | 20 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 85 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Waga | 25 kg |
| Chassis type | |
| Total of CPU Cores | |
| Maksymalna ilość procesorów | |
| Klasa sprawności zasilacza | |
| RAM Capacity |
