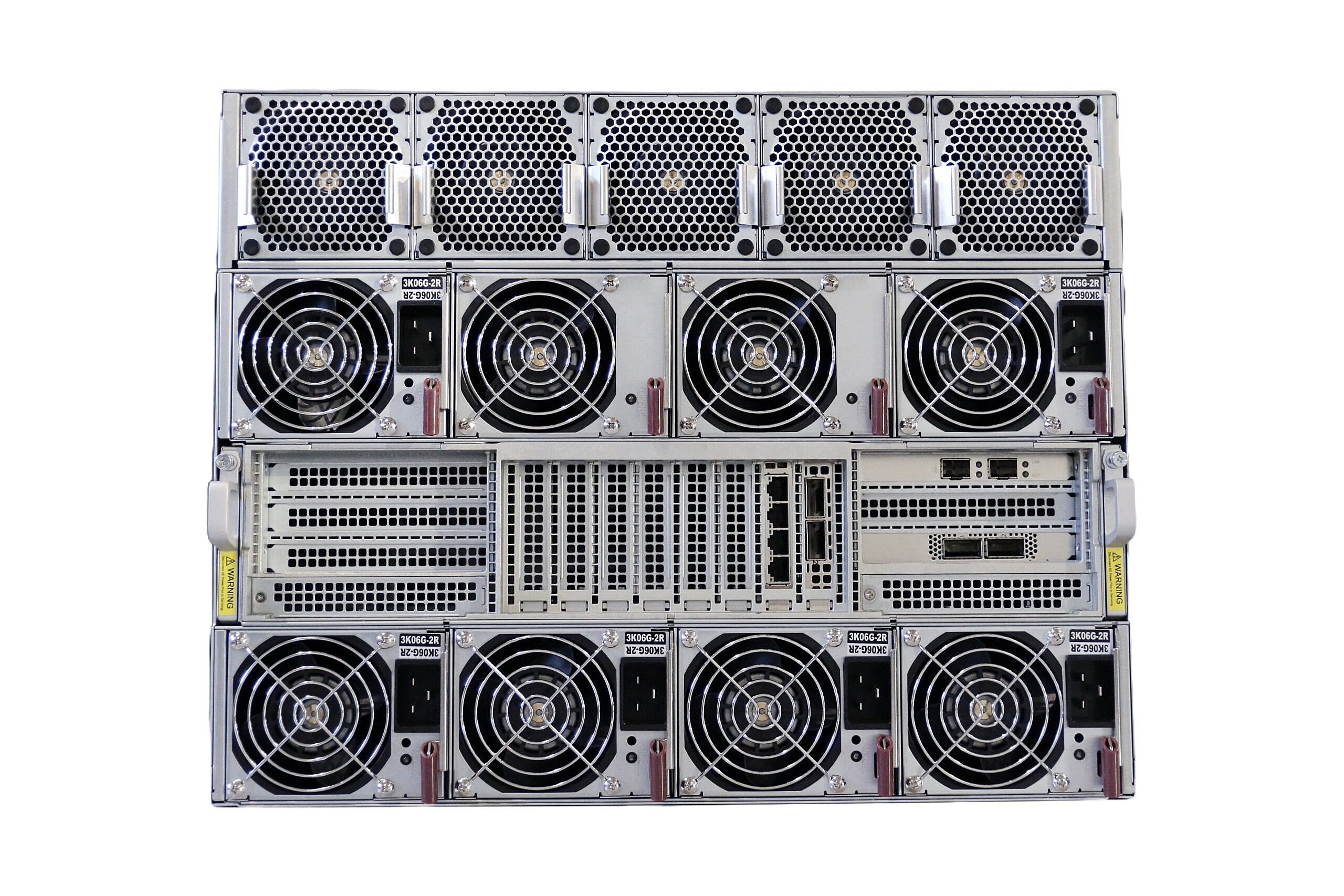

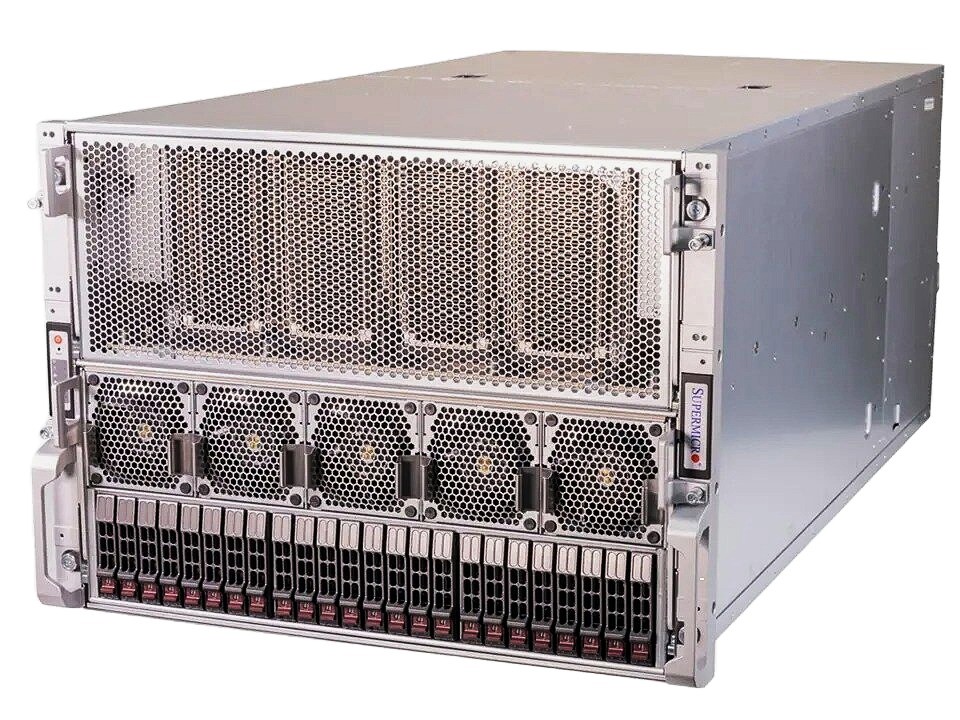

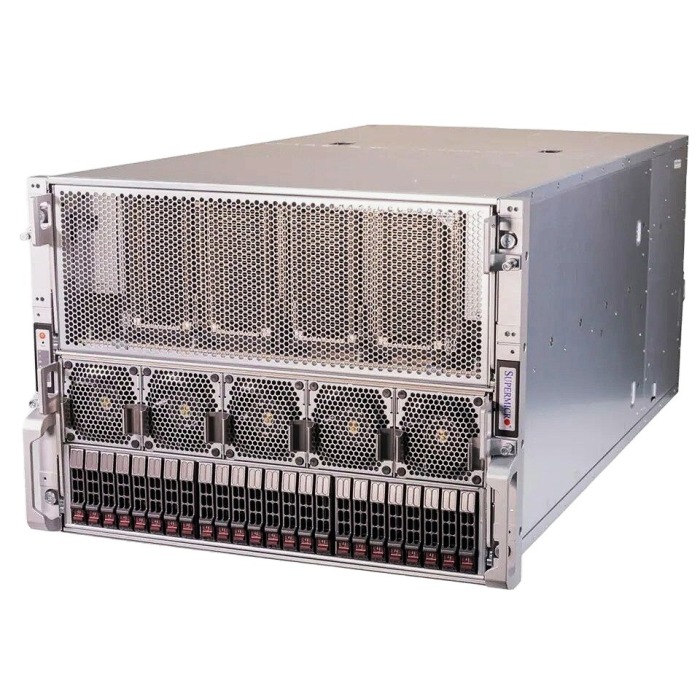

Supermicro GPU SuperServer SYS-821GE-TNHR with 2x Platinum 8480+, 2048GB RAM, 2x960GB NVMe, 8x3.84TB NVMe, 8xNVIDIA H200 141GB, 8x(1x400GbE), 1x(2x100GbE), 6xPSU, rails
Manufacturer: Supermicro
PN: SUPERMICRO-SYS-821GE-TNHR-2x8480+-2TB-8xH200-6xPSU-V01
Loading...
Calculating delivery time...In stock: 1
Warranty: 36 months with the possibility of extension
This set contains:
- 1x Supermicro GPU SuperServer SYS-821GE-TNHR platform
- 2x Intel Xeon Platinum 8480+ Processor 56-core 2GHz 105MB 350W SRM7H
- 32x 64GB DDR5 RDIMM 4800MHz RAM
- 2x 960GB SSD NVMe 2.5" hard drive
- 8x 3.84TB SSD PCIe NVMe 2.5" hard drive
- 8x Mellanox ConnectX-7 1x400GbE QSFP-DD PCIe 5.0 x16 Adapter Network interface card
- 1x Dell Mellanox ConnectX-6 VPI 1x200GbE QSFP56 PCIe 4.0x16 Network interface card
- 1x GPU baseboard NVIDIA HGX H200 with 8x H200 141GB SXM5
- 6x Supermicro PSU 3000W AC 50-60Hz 80+ Titanium
Technical Information – Supermicro GPU SuperServer SYS-821GE-TNHR
- Server height: 8U
- Server depth: 84.3 cm
- Server weight: 102.1 kg (fully configured)
- Chassis configuration: 16x 2.5", or 16x 2.5" + 8x 2.5"
- Number of processors: 2 x 4th/5th Generation Intel Xeon Scalable processors
- Maximum CPU cores: 2x 64-core / 128-thread CPUs – total 128 cores / 256 threads
- Number of memory slots: 32x DDR5 RDIMM
- Maximum memory capacity: 32x 256GB DDR5 RDIMM, total 8TB
- Motherboard chipset: Intel C741
- PCIe slots: 8x PCIe 5.0 (x16, low profile), plus optional 2x PCIe 5.0 (x16 FHHL)
- Maximum number of power supplies: 8x 3000W
- Supported power supplies: 3000W
- Remote management: IPMI 2.0, KVM over LAN, SuperDoctor 5, SSM, SUM
Optional accessories for the Supermicro SYS-821GE-TNHR server
The server can be equipped with the following optional accessories:
- Cable management arm
- Empty 2.5" SATA/NVMe drive trays
- Front bezel / faceplate
- Power cables
- PCIe expansion cards (e.g. network adapters)
All additional accessories are available in our store.
Operating systems available with the server
- Windows Server Standard
- Windows Server Essentials
- Windows Server Datacenter
- VMWare (ESXi, vSphere, vSAN)
- Other software, for example SQL Server
When buying this server from Hardware Direct, you can be sure that:
- The server has been thoroughly tested, is 100% functional, and ready for operation in demanding environments.
- The server is restored to factory defaults and updated to the latest firmware version — ensuring no issues will occur after performing your own updates.
- You are purchasing from a partner with a professional data center hardware service.
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver replacement hardware directly to you. More details are available in the respective tab.
IMPORTANT NOTICE
All product images are for illustration purposes only.
Some configuration elements, such as risers, may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Condition | Refurbished |
| GPU installed | 1 |
| CPU Base Frequency | 2 GHz |
| Number of CPUs installed | 2 |
| Total of CPU Threads | 224 |
| Turbo clock frequency | 3.8 GHz |
| Processor TDP | 350 W |
| Total PSUs installed | 6 |
| Chassis type | |
| Total of CPU Cores | |
| Maximum number of processors | |
| RAM Capacity |
