Server Dell PowerEdge R6525 10x2.5" NVMe with 2x EPYC 7713, 128GB RAM, H345, BOSS Card 2xM.2, 2x 1.92TB SATA SSD, 2x 1.6TB NVMe SSD U.2, 2x1GbE LOM, 2x25GbE SFP28 OCP, 2x25GbE SFP28, TPM 2.0, 2xPSU, rails, iDRAC 9 Enterprise
Manufacturer: Dell
PN: R6525-10x2.5-2x7713-128GB-H345-V01
Loading...
Calculating delivery time...In stock: 1
Warranty: 36 months with the possibility of extension
This set contains:

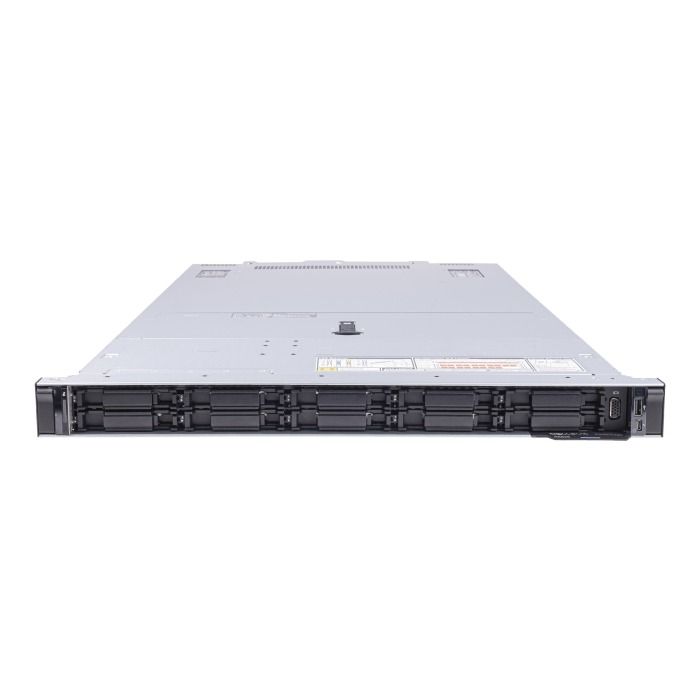

- 1x Dell PowerEdge R6525 10x2.5" server platform
- 2x Processor AMD EPYC 7713 64-core 2GHz 256MB 225W
- 2x RAM 64GB 3200MHz DDR4 RDIMM
- 1x BOSS SATA Adapter 2xM.2 2280 Card
- 2x Dell 1.6TB SSD PCIe NVMe 4.0 U.2 TLC MU AES-256
- 2x Dell 1.92TB SSD SATA 6G 2.5" TLC RI
- 1x RAID Dell H345 Front PERC 12Gb SAS
- 1x NVMe cable Dell PowerEdge R6525 Front RAID
- 1x Network card Dell Mellanox ConnectX-5 2x25GbE SFP28 PCIe 3.0x16 OCP 3.0
- 1x Dell 2x1GbE RJ45 NDC network card
- 1x Cryptographic module Dell TPM 2.0
- 2x Dell power supply
- 1x Rail kit
Technical information about the R6525 server model line.
- Server height: 1U
- Server depth: 74cm
- Server weight: 22kg
- Number of processors: 10x2.5", 8x2.5", 4x3.5"
- Number of processors: maximum 2 x CPU 2nd&3rd Generation AMD Epyc processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 64-core / 128-thread CPU total 128-core / 256-thread
- Number of RAM banks: 32 DDR4
- Maximum RAM size: 32x128GB DDR4 RDIMM total 4TB
- Number of drive bays: 10x2.5", 8x2.5", 4x3.5"
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 4x PCIe Gen 4 ( 3xPCIe, 1xOCP)
- Maximum number of power supplies: 2
- Supported power supplies: 800W, 1100W or 1400W
- Remote management: iDRAC 9
- Supported internal RAID controllers: HBA345, H345, H745, H840, H755, H755N and S150
Optional accessories for the R6525 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such asSQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
Attention!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R6525 10x2.5" |
| Core Count | 64 |
| Number of 1GbE RJ45 ports | 2 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 2 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| Chassis type | Obudowa Rack 1U |
| CPU Cores | 128 |
| Suma mocy zasilaczy | 1200 W |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Maksymalna ilość procesorów | 2 |
| Ilość wątków | 256 |
| Ilość wątków w procesorze | 128 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 225 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 128 GB |
