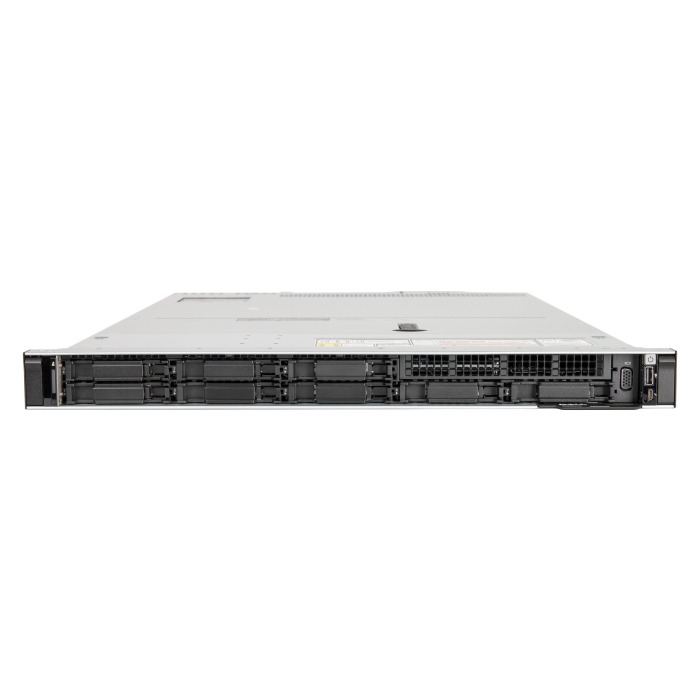

Server Dell PowerEdge R660xs 8x2.5" with 2x Silver 4410Y, 32GB RAM, H755N, 2x 960GB SSD SATA 2.5", 2x1GbE RJ45, 2x PSU, rails, iDRAC 9
Manufacturer: Dell
PN: R660XS-8x2.5-2x4410Y-32GB-H755N-V01
Loading...
Calculating delivery time...In stock: 1
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R660xs 8x2.5" server platform
- 2x Intel Xeon Silver 4410Y 12-core 2GHz 30MB 150W SRMGE processor
- 2x RAM 16GB DDR5 RDIMM
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell H755N Front PERC RAID controller
- 1x Dell PowerEdge R660xs 8x2.5" SAS cable
- 1x Dell 2x1GbE RJ45 NDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the R660xs server model line.
- Server height: 1U
- Server depth: 75cm
- Server weight: 20kg
- Chassis types: 0 drive bay, 4x3.5", 10x2.5" or 8x2.5"
- Number of processors: maximum 2x 4th generation Intel Xeon Scalable processors (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 28-core / 56-thread, CPU total 56-core / 112-thread CPU 5
- Number of RAM banks: 16 DDR4
- Maximum RAM size: 32x256GB DDR5 RDIMM, total 8TB
- Number of drive bays: 0 drive bay, 4x3.5", 10x2.5" or 8x2.5"
- Number of USB ports: 4 (1x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 3x PCIe Gen 5 + 1x OCP 3.0
- Maximum number of power: 2
- Supported power supplies: 600W, 700W, 800W, 1100W, 1400W lub 1800W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H965i, H755, H755N, H355, HBA355i and S160
Optional accessories for the R660xs server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
The photos included in the auction are for illustrative purposes only.
Some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R660xs 8x2.5" |
| Core Count | 12 |
| Number of 1GbE RJ45 ports | 2 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| CPU Cores | 24 |
| Suma mocy zasilaczy | 1600 W |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Maksymalna ilość procesorów | 2 |
| Ilość wątków | 48 |
| Ilość wątków w procesorze | 24 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 150 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 0 |
