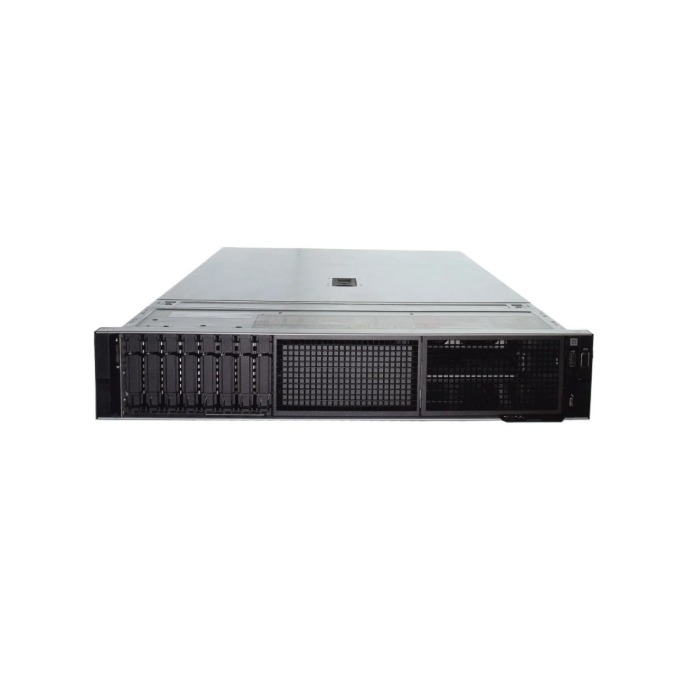

Server Dell PowerEdge R760 8x2.5" with 2x Silver 4410Y, 64GB RAM, H755, 2x 960GB SSD SATA 2.5", 2x1GbE RJ45, 2x PSU, rails, iDRAC 9

Technical information about the R760 model line of servers

• Server height: 2U
• Server depth: 78cm
• Server weight: 36kg
• Chassis types: 12x3.5“, 8x2.5”, 16x2.5“, 24x2.5” or 16xEDSFF E3.S Gen5
• Number of processors: maximum 2 x CPU 4th or 5th Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores: 2x 56-core / 112-thread CPU total 112-core / 224-thread for 4th-generation processors or 2x 64-core / 128-thread CPU total 128-core / 256-thread for 5th-generation processors
• Number of RAM banks: 32 DDR4
• Maximum RAM size: 32x256GB DDR5 RDIMM total 8TB
• Number of drive bays: 12x3.5“, 8x2.5”, 16x2.5“, 24x2.5” or 16xEDSFF E3.S Gen5
• Number of USB ports: 4  (1x front, 2x rear, 1x inside)
• Number of PCI-E slots: up to 8x PCIe Gen5 + OCP 3.0
• Maximum number of power supplies: 2
• Supported power supplies: 700W, 800W, 1100W, 1400W, 1800W, 2400W, 2800W or 3200W
• Remote management: iDRAC 9
• Supported internal RAID controllers: H965i, H755, H755N, H355, HBA355i or S160

Optional accessories for the R760 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
