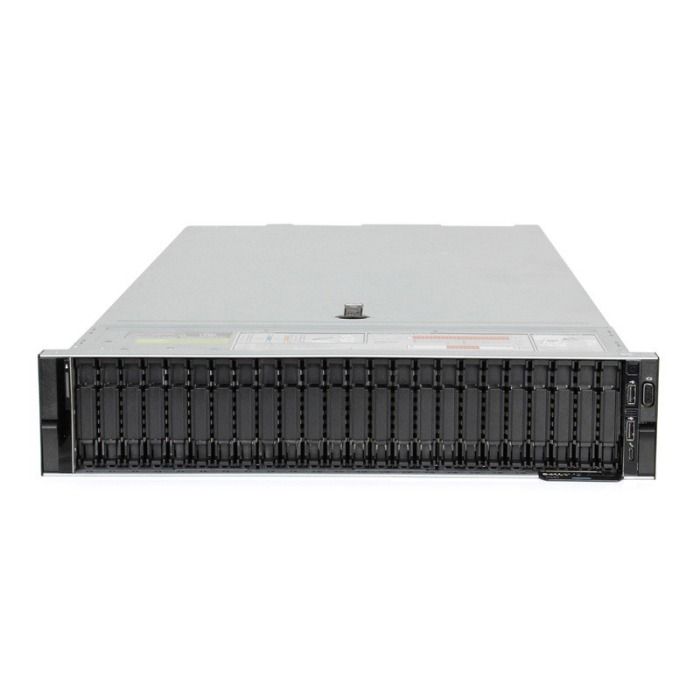

Server Dell R840 24x2.5" with 4x Gold 5222, 128GB RAM, H730P, 2x 960GB SSD SATA 2.5", 4x1GbE, 2xPSU, Rails, iDRAC 9 Enterprise
Manufacturer: Dell
PN: R840-24x2.5-4x5222-128GB-H730P-V01
Loading...
Calculating delivery time...In stock: 6
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R840 24x2.5" server platform
- 4x Intel Xeon Gold 5222 4-core 3.8GHz 16.5MB 105W SRF8V processor
- 8x RAM 16GB 2933MHz RDIMM DDR4
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell PowerEdge R840 24x2.5" server platform
- 1x Dell H730P 2GB Adapter RAID controller
- 1x Dell 4x1GbE rNDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the R840 server model line.
- Server height: 2U
- Server depth: 84cm
- Server weight:/strong> 37kg
- Chassis types: 8x2.5" or 24x3.5"
- Number of processors: up to 4 x CPU 2nd Generation Intel Xeon Scalable processors
- Maximum number of CPU cores: 4x 28-core / 56-thread CPU total 112-core / 224-thread
- Number of RAM banks: 48 DDR4
- Maximum RAM size: 48x128GB DDR4 RDIMM razem 6TB
- Number of drive bays: 8x2.5" or 24x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 6x PCIe Gen 3
- Maximum number of power supplies: 2
- Supported power supplies: 750W, 1100W, 1600W, 2000W or 2400W
- Remote management: iDRAC 9
- Supported internal RAID controllers:: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards
Optional accessories for the R840 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
Attention!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R840 24x2.5", PowerEdge R840 24x2.5" 2x2.5" |
| Core Count | 4 |
| Number of 1GbE RJ45 ports | 4 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| CPU Cores | 16 |
| Suma mocy zasilaczy | 990 W |
| Single CPU PassMark score | 9428 |
| CPU Base Frequency | 3 GHz |
| Ilość zainstalowanych procesorów | 4 |
| Maksymalna ilość procesorów | 4 |
| Ilość wątków | 32 |
| Ilość wątków w procesorze | 8 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 105 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 128 GB |
