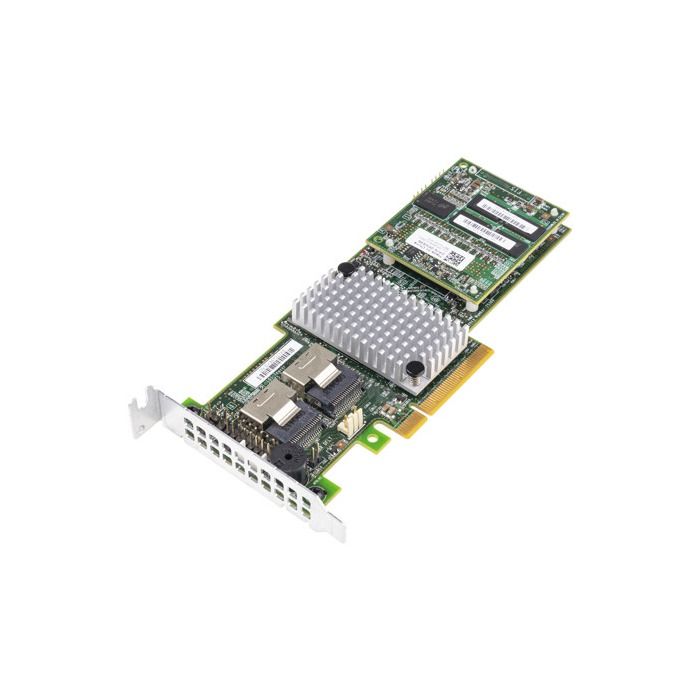

RAID Controller Dell Broadcom MegaRAID 9265-8I 1GB Adapter PCI-E 2.0x8 2xSFF-8087 6Gb SAS 3Gb SATA L2-25374-11A
Manufacturer: Broadcom
PN: L2-25374-11A
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 1GB
- Supported RAID levels - RAID-0, RAID-1, RAID-5, RAID-6, RAID-10, RAID-50, RAID-60
- Controller connectors - 2x SFF-8087
- Supported disk interfaces - 3Gb SATA, 6Gb SAS
- Maximum number of drives - 32
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- Data transfer per port - 6Gb
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Broadcom |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Controller connectors | 2x SFF-8087 |
| Supported disk interfaces | SAS 6Gb/s, SATA 3Gb/s |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 2.0 |
| Data transfer per port | 6Gb/s |
| Card type | Adapter |
| Cache size | 1GB |
