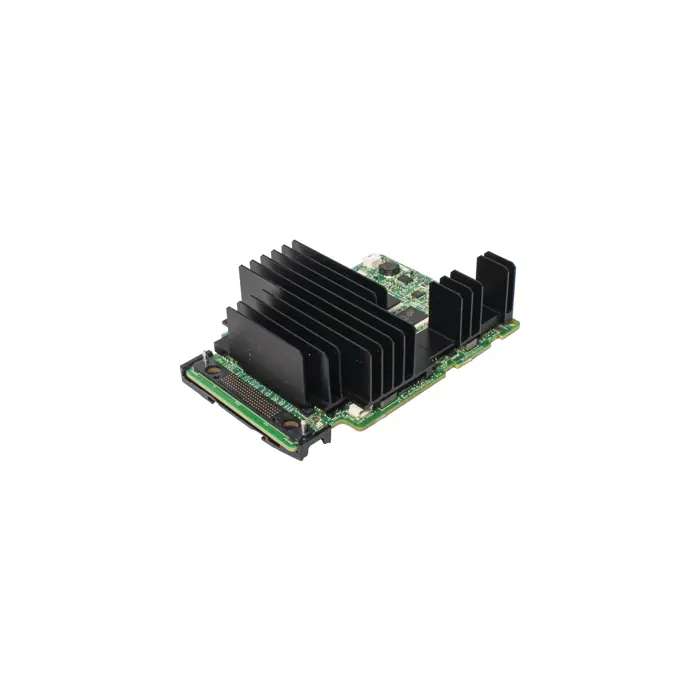

RAID Controller Dell Perc H730P 2GB Mini mono 12Gb SAS PCIe 3.0x8 7H4CN
Manufacturer: Dell
PN: 7H4CN
Available for pickup tomorrow at 10:00
In stock: 87
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 2GB
- Supported RAID levels - RAID-5, RAID-6, RAID-10, RAID-50, RAID-60, RAID-1, RAID-0
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 1xPERC
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 255
- Chipset - LSI SAS3108
- Support for 4KN drives - Yes
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- RAM type - DDR3
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R730XD, PowerEdge R730XD 12x3.5", PowerEdge R730XD 12x3.5" 2x2.5", PowerEdge R730XD 12x3.5" 4x3.5", PowerEdge R730XD 12x3.5" 4x3.5" 2x2.5", PowerEdge R730xd 18x1.8", PowerEdge R730XD 24x2.5", PowerEdge R730XD 24x2.5" 2x2.5", PowerEdge R730xd 4x3.5" |
| Controller type | RAID controller |
| Maximum number of drives | 255 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | DELL PERC MINI SAS |
| Supported disk interfaces | SAS 12Gb/s |
| Chipset | LSI SAS 3108 1200MT/s PowerPC 476 dual-core 12Gbps ROC |
| Support for 4KN drives | Yes |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 12Gb/s |
| RAM type | DDR3 |
| Card type | Mini mono |
| Cache size | 2GB |
