Card Dell TeraDici HC-2240 PCIe 1.1x1 4x miniDP 1x1GbE PCoIP 9Y6T7
Technical parameters:
- PCI-E generation - 1.1
- PCI-E bus width - x1
- Number of 1GbE RJ45 ports - 1
- Port type - mDP 1.2
Teradici's PCoIP protocol is a remote screen technology that allows applications and data (without leaving the data center or cloud), to be imaged and edited anywhere via any network and any tool. With PCoIP technology, applications can be hosted and managed in the cloud or data center, while users are constantly using them from distributed locations.
The card is recognized by the system as a display, directly connected to any GPU output via a display cable, and uses the PCIe bus to transmit USB control and audio. This solution provides the best possible user experience; encoding the pixels rendered by the system and encrypting them, then sending them over any IP network to the end device.
The card encrypts transmitted pixels using advanced security algorithms, including cryptography AES-256 and NSA Suite B.
Broker support: Leostream Connection Broker, VMware View Broker. Supports virtual or physical deployments.
Supported systems: Windows i Linux CentOS, Red Hat I source code for other Linux distributions.
Compliance with endpoints: PCoIP Zero Client (Recommended to be able to achieve full functionality) PCoIP Software Client for Mac or Windows

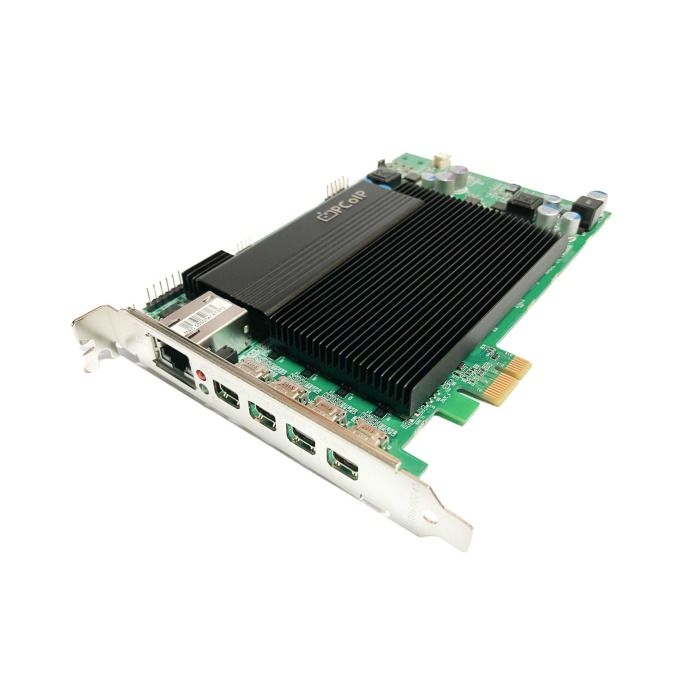

The posted photo is for illustrative purposes and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Teradici |
|---|---|
| PCI-E generation | PCI Express 1.1 (2.5GT/s) |
| PCI-E bus width | x1 |
| Number of 1GbE RJ45 ports | 1 |
| Port type | mDP 1.2 |
