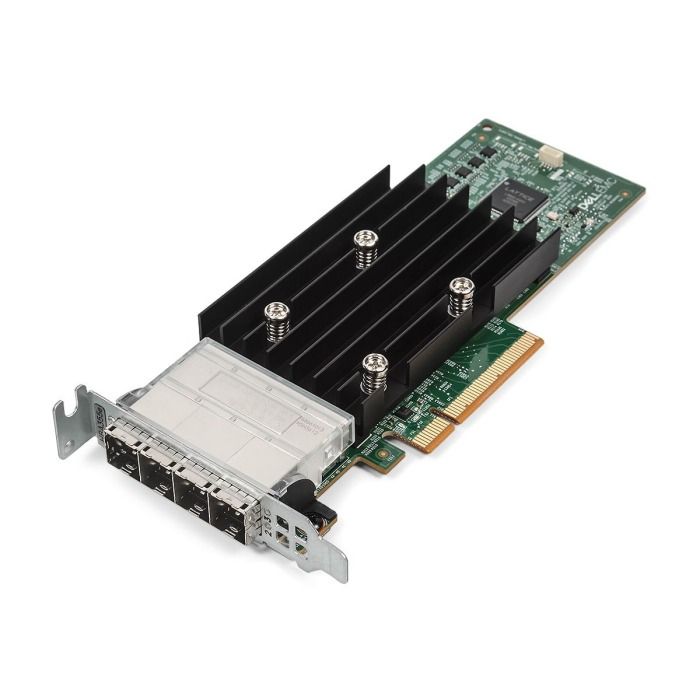

HBA card Dell 355E PCIe 3.0x8 4xSFF-8644 12Gb SAS 1KH9T
Manufacturer: Producent nieznany
PN: 1KH9T
Loading...
Calculating delivery time...In stock: 1
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 4x SFF-8644
- Supported disk interfaces - 12Gb SAS, 6Gb SAS, 3Gb SAS, 6Gb SATA, 3Gb SATA
- Maximum number of drives - 240
- Support for 4KN drives - Yes
- Number of SAS ports - 16
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- Controller type - HBA SAS card
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Producent nieznany |
|---|---|
| Compatible with | PowerEdge R240, PowerEdge R240 4x3.5" Hot-Plug, PowerEdge R240 4x3.5" non Hot-Plug, PowerEdge R340, PowerEdge R340 4x3.5", PowerEdge R340 8x2.5", PowerEdge R440, PowerEdge R440 10x2.5", PowerEdge R440 4x3.5", PowerEdge R440 8x2.5", PowerEdge R540, PowerEdge R540 12x3.5", PowerEdge R540 8x3.5", PowerEdge R640, PowerEdge R640 10x2.5", PowerEdge R640 4x3.5", PowerEdge R640 4x3.5" 2x2.5", PowerEdge R640 8x2.5", PowerEdge R640 diskless, PowerEdge R740, PowerEdge R740 16x2.5", PowerEdge R740 8x2.5", PowerEdge R740 8x3.5", PowerEdge R740 diskless, PowerEdge R740xd, PowerEdge R740xd 12x3.5", PowerEdge R740XD 12x3.5" 4x3.5" 2x3.5", PowerEdge R740xd 24x2.5", PowerEdge R740xd 24x2.5" 4x2.5", PowerEdge R7415, PowerEdge R7415 8x3.5", PowerEdge R7415 12x3.5", PowerEdge R7415 24x2.5", PowerEdge R7415 24x2.5" NVMe, PowerEdge R7415 8x2.5", PowerEdge R7425, PowerEdge R7425 12x3.5", PowerEdge R7425 12x3.5" 2.5", PowerEdge R7425 12x3.5" 4x3.5" 2x3.5", PowerEdge R7425 16x2.5", PowerEdge R7425 16x2.5" 8x2.5" NVMe, PowerEdge R7425 16x2.5" NVMe 8x2.5", PowerEdge R7425 24x2.5", PowerEdge R7425 24x2.5" 4x2.5", PowerEdge R7425 24x2.5" 4x3.5" 4x2.5", PowerEdge R7425 8x2.5", PowerEdge R7425 8x3.5", PowerEdge R840, PowerEdge R840 24x2.5", PowerEdge R840 24x2.5" 2x2.5", PowerEdge R840 8x2.5", PowerEdge R940xa, PowerEdge R940xa 24x2.5", PowerEdge R940xa 32x2.5", PowerEdge R940xa 4x2.5" NVMe, PowerEdge R940xa 8x2.5", PowerEdge T140, PowerEdge T140 4x3.5", PowerEdge T440, PowerEdge T440 16x2.5", PowerEdge T440 8x3.5", PowerEdge T640, PowerEdge T640 16x2.5", PowerEdge T640 18x3.5", PowerEdge T640 32x2.5", PowerEdge T640 8x3.5", PowerFlex R740xd |
| Controller type | HBA SAS card |
| Maximum number of drives | 240 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 4x SFF-8644 |
| Supported disk interfaces | SAS 12Gb/s, SAS 3Gb/s, SAS 6Gb/s, SATA 3Gb/s, SATA 6Gb/s |
| Support for 4KN drives | Yes |
| Number of SAS ports | 16 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| Card type | Adapter |
