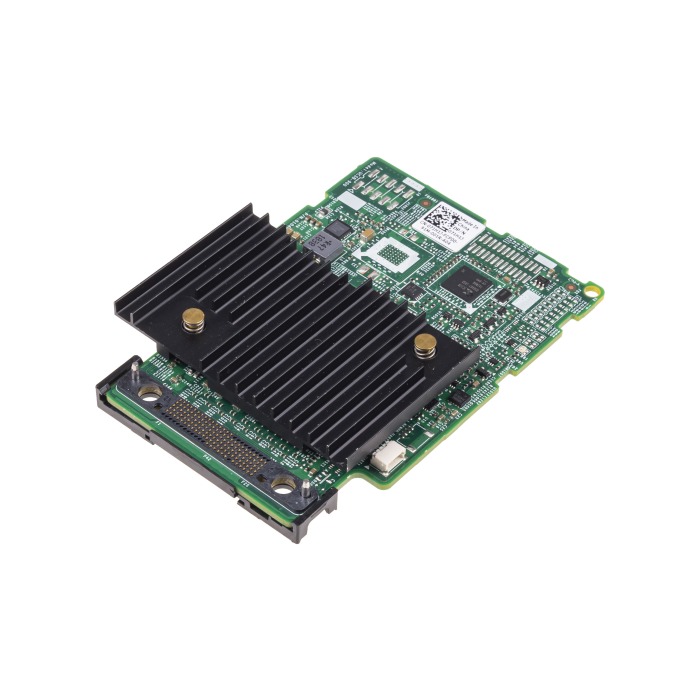

HBA SAS Dell Perc HBA330 Mini mono PCI-E 3.0 12Gb SAS 71H1J
Manufacturer: Dell
PN: 71H1J
Loading...
Calculating delivery time...In stock: 96
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 0MB
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 1xPERC
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS3008
- Support for 4KN drives - Yes
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- Controller type - HBA SAS card
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge C6420, PowerEdge R740xd, PowerEdge R740xd 12x3.5", PowerEdge R740XD 12x3.5" 4x3.5" 2x3.5", PowerEdge R740xd 24x2.5", PowerEdge R740xd 24x2.5" 4x2.5", PowerEdge R740xd2, PowerEdge R740xd2 24x3.5", PowerEdge XR2 |
| Controller type | HBA SAS card |
| Maximum number of drives | 32 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | DELL PERC MINI SAS |
| Supported disk interfaces | SAS 12Gb/s |
| Chipset | LSI SAS 3008 |
| Support for 4KN drives | Yes |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| Card type | Mini mono |
| Cache size | 0 MB |
