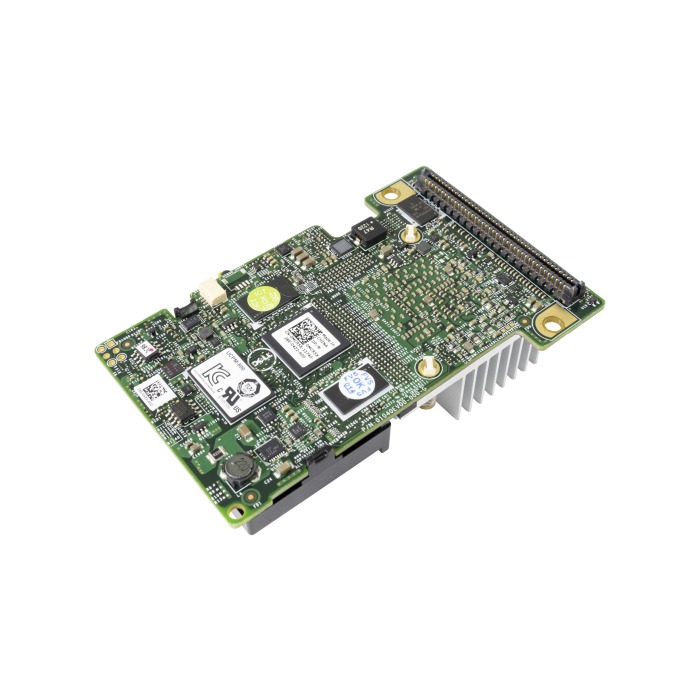

RAID Controller Dell H710 512MB Mini mono PCI-E 2.0 2xSFF-8088 Internal 6Gb SAS MCR5X
Manufacturer: Dell
PN: MCR5X
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 512MB
- Supported RAID levels - RAID-50, RAID-60, RAID-10, RAID-6, RAID-5, RAID-1, RAID-0
- Controller connectors - 2x SFF-8088
- Supported disk interfaces - 6Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS2208
- Support for 4KN drives - No
- Host bus - PCIe 2.0x8
- RAID protection - NV-RAM
- Data transfer per port - 6Gb
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Controller connectors | 2x SFF-8088 |
| Supported disk interfaces | SAS 6Gb/s |
| Chipset | LSI SAS2208 |
| Support for 4KN drives | No |
| Host bus | 8-lane PCIe 2.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 6Gb/s |
| Card type | Mini mono |
| Cache size | 512MB |
