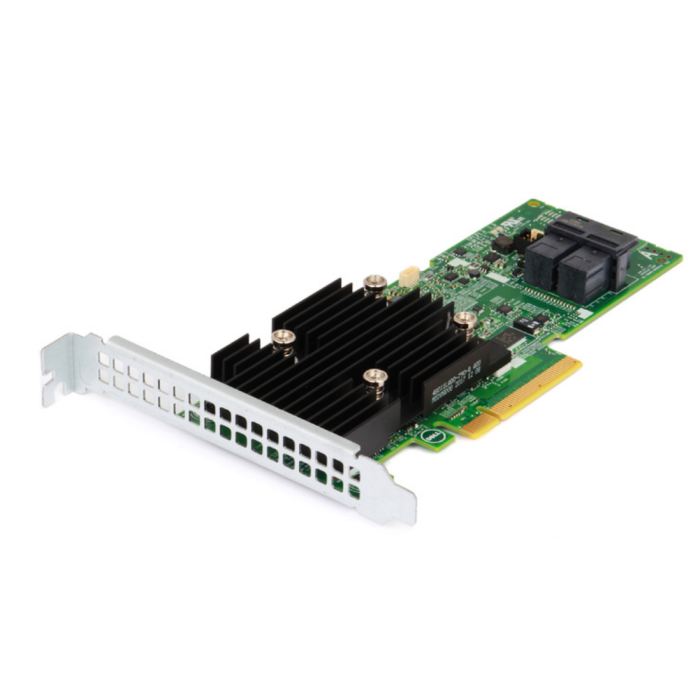

RAID Controller Dell H730P+ 2GB Adapter PCI-E 3.0x8 2xSFF-8643 Internal 12Gb SAS 6Gb SATA J14DC
Manufacturer: Dell
PN: J14DC
Loading...
Calculating delivery time...In stock: 9
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 2GB
- Supported RAID levels - RAID-5, RAID-6, RAID-10, RAID-50, RAID-60, RAID-1, RAID-0
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 2x SFF-8643
- Supported disk interfaces - 6Gb SATA, 12Gb SAS
- Maximum number of drives - 255
- Chipset - LSI SAS3108
- Support for 4KN drives - Yes
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- RAM type - DDR3
- RAM clock frequency - 1866MHz
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 255 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 2x SFF-8643 |
| Supported disk interfaces | SAS 12Gb/s, SATA 6Gb/s |
| Chipset | LSI SAS 3108 1200MT/s PowerPC 476 dual-core 12Gbps ROC |
| Support for 4KN drives | Yes |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 12Gb/s |
| RAM type | DDR3 |
| Card type | Adapter |
| Cache size | 2GB |
| RAM clock frequency | 1866Mhz |
