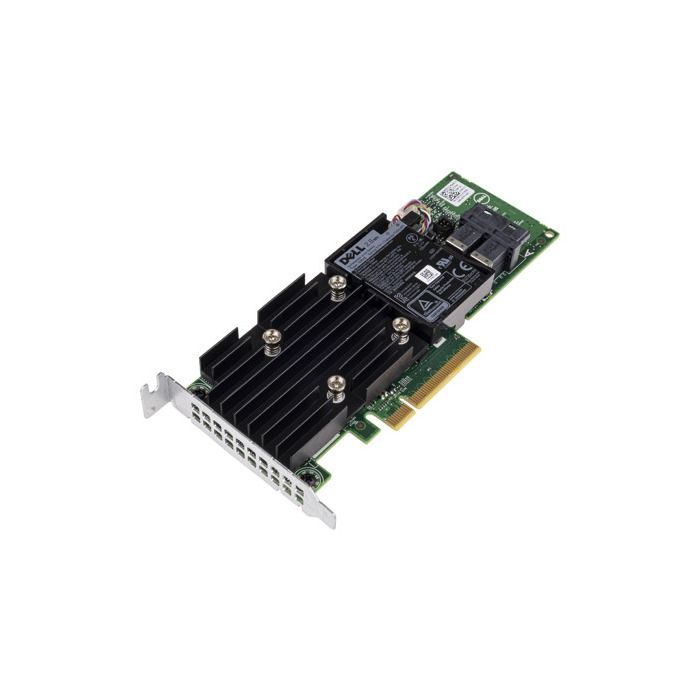

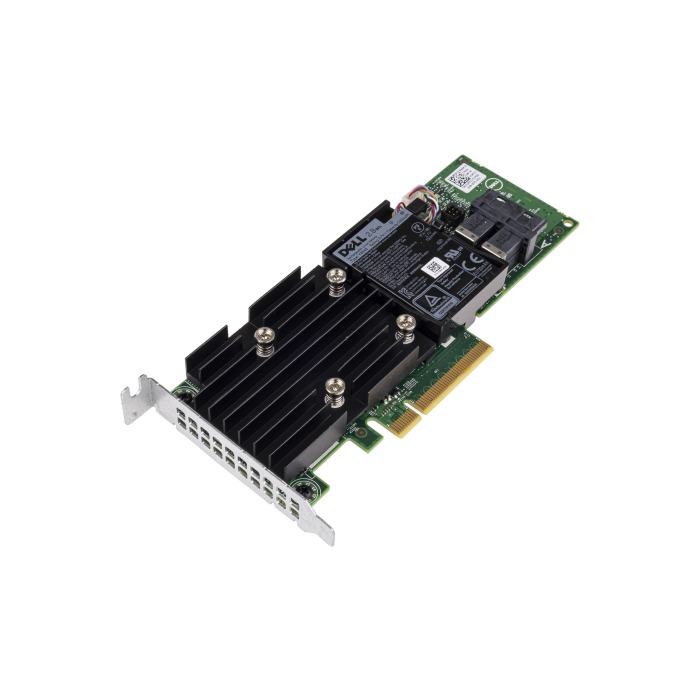

RAID Controller Dell H740P 8GB Adapter PCI-E 3.0x8 2xSFF-8643 Internal 12Gb SAS 6Gb SATA 1M71J
Manufacturer: Dell
PN: 1M71J
Loading...
Calculating delivery time...
In stock: 2
Warranty: 12 months
with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 8GB
- Supported RAID levels - RAID-50, RAID-60, RAID-10, RAID-6, RAID-5, RAID-1, RAID-0
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 2x SFF-8643
- Supported disk interfaces - 6Gb SATA, 12Gb SAS
- Maximum number of drives - 32
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Dell |
|---|---|
| Cache size | 8GB |
| Card type | Adapter |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 2x SFF-8643 |
| Supported disk interfaces | SAS 12Gb/s, SATA 6Gb/s |
| Host bus | 8-lane PCIe 3.0 |
| RAID protection | NV-RAM |
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Number of SAS ports | 8 |
| Data transfer per port | 12Gb/s |
