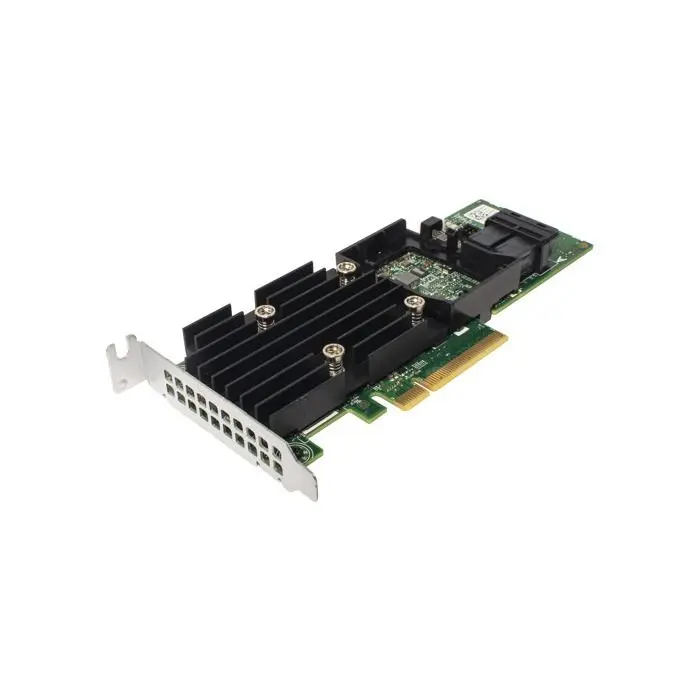

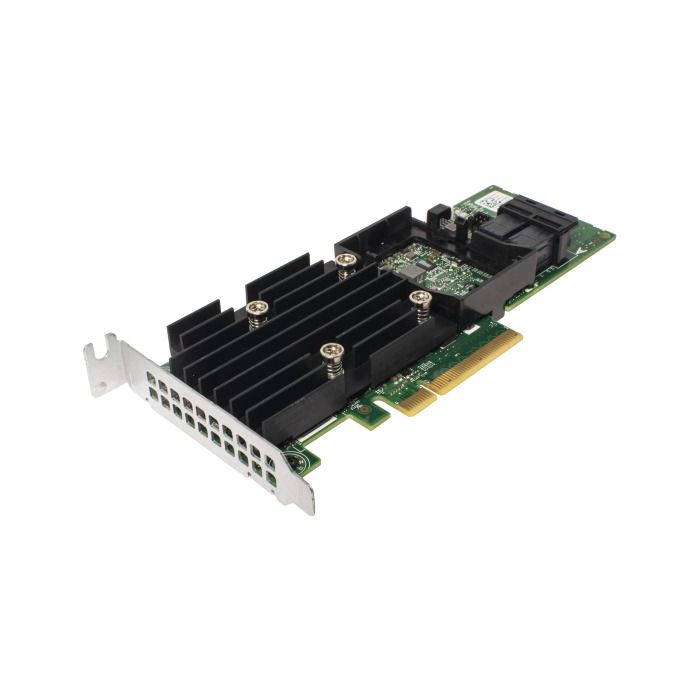

RAID Controller Dell H740P 8GB Adapter PCI-E 3.0x8 SFF-8643 Internal 12Gb SAS DPNHJ
Manufacturer: Dell
PN: DPNHJ
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 8GB
- Supported RAID levels - RAID-0, RAID-1, RAID-5, RAID-6, RAID-10, RAID-50, RAID-60
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 2x SFF-8643
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 32
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 2x SFF-8643 |
| Supported disk interfaces | SAS 12Gb/s |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 12Gb/s |
| Card type | Adapter |
| Cache size | 8GB |
