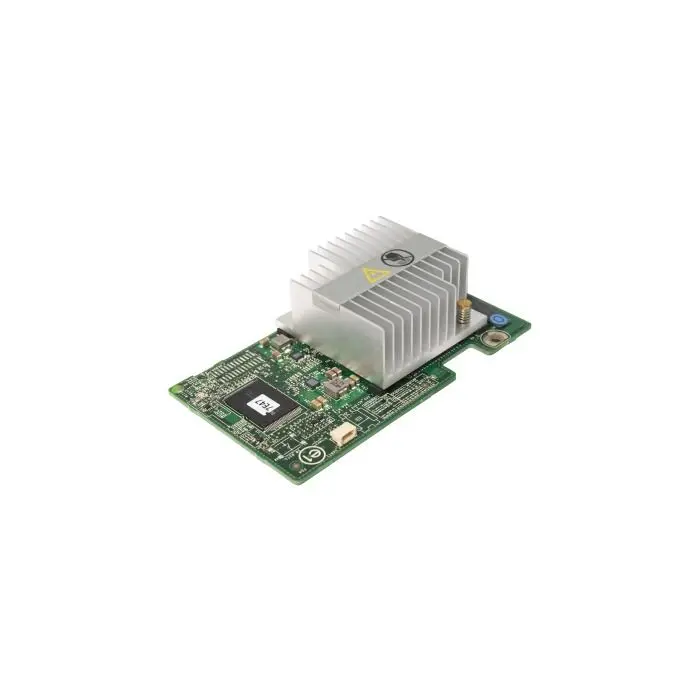

RAID Controller Dell Perc H310 Mini mono PCI-E 2.0 6Gb SAS 6Gb SATA K09CJ
Manufacturer: Dell
PN: K09CJ
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Supported RAID levels - RAID-5, RAID-1, RAID-0, RAID-10, RAID-50
- Controller connectors - 1xPERC
- Supported disk interfaces - 6Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS2008
- Support for 4KN drives - No
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- Data transfer per port - 6Gb
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R420, PowerEdge R420 4x3.5", PowerEdge R420 4x3.5" non Hot-Plug, PowerEdge R420 8x2.5", PowerEdge R620, PowerEdge R620 10x2.5", PowerEdge R620 4x2.5", PowerEdge R620 4x2.5" 2xExpress Flash, PowerEdge R620 6x2.5", PowerEdge R620 8x2.5", PowerEdge R720, PowerEdge R720 16x2.5", PowerEdge R720 8x2.5", PowerEdge R720 8x3.5" |
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50 |
| Controller connectors | DELL PERC MINI SAS |
| Supported disk interfaces | SAS 6Gb/s |
| Chipset | LSI SAS2008 |
| Support for 4KN drives | No |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 2.0 |
| Data transfer per port | 6Gb/s |
| Card type | Mini mono |
