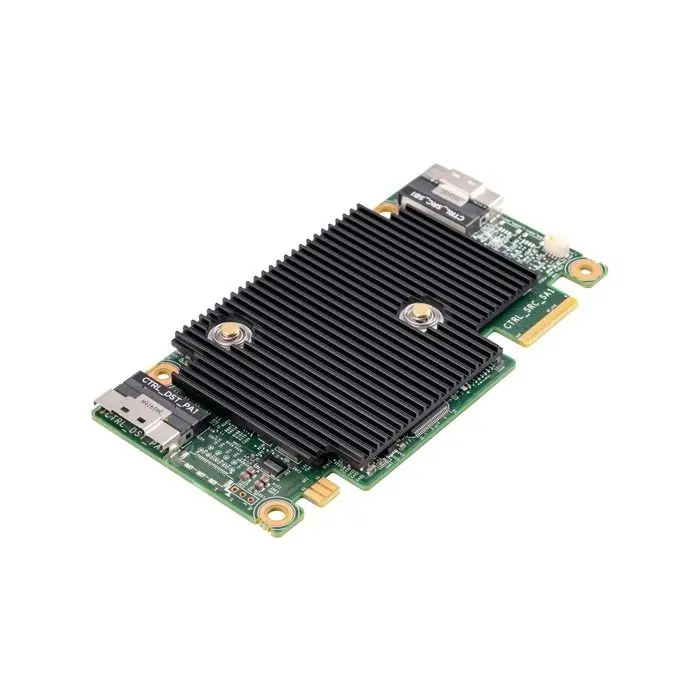

RAID Controller Dell Perc H345 Front PCI-E 3.0 2xSFF-8654 12Gb SAS FW25F
Manufacturer: Dell
PN: FW25F
Loading...
Calculating delivery time...In stock: 6
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Supported RAID levels - RAID-0, RAID-1, RAID-10
- Controller connectors - 2x SFF-8654
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 63
- Chipset - LSI SAS3416
- Support for 4KN drives - Yes
- Number of SAS ports - 16
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge C6525, PowerEdge R6525, PowerEdge R6525 10x2.5", PowerEdge R6525 4x3.5", PowerEdge R6525 4x3.5" 2x2.5", PowerEdge R6525 8x2.5", PowerEdge R7525, PowerEdge R7525 12x3.5", PowerEdge R7525 16x2.5", PowerEdge R7525 24x2.5", PowerEdge R7525 24x2.5" 16x2.5", PowerEdge R7525 8x2.5", PowerEdge R7525 8x3.5" |
| Controller type | RAID controller |
| Maximum number of drives | 63 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10 |
| Controller connectors | 2x SFF-8654 |
| Supported disk interfaces | SAS 12Gb/s |
| Chipset | LSI SAS 3416 |
| Support for 4KN drives | Yes |
| Number of SAS ports | 16 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| Card type | Mini mono |
