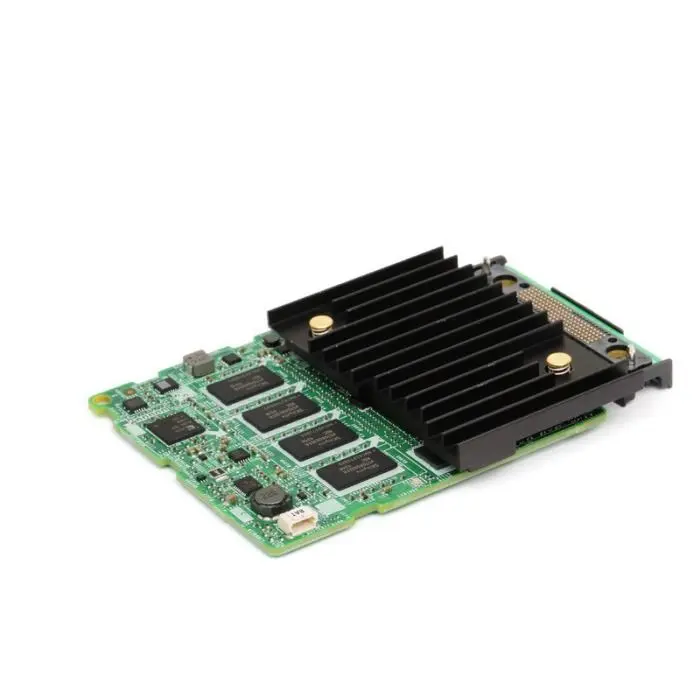

RAID Controller Dell Perc H730P 2GB Cache Mini Mono 7XTY8
Manufacturer: Dell
PN: 7XTY8
Loading...
Calculating delivery time...In stock: 7
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 2GB
- Supported RAID levels - RAID-60, RAID-50, RAID-10, RAID-6, RAID-5, RAID-1, RAID-0
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 1xPERC
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 255
- Support for 4KN drives - Yes
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- RAM type - DDR3
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 255 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | DELL PERC MINI SAS |
| Supported disk interfaces | SAS 12Gb/s |
| Support for 4KN drives | Yes |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 12Gb/s |
| RAM type | DDR3 |
| Card type | Mini mono |
| Cache size | 2GB |
