RAID Controller Dell Perc H740P 8GB Mini mono PCI-E 3.1 12Gb SAS 5FMY4
Manufacturer: Dell
PN: 5FMY4
Loading...
Calculating delivery time...In stock: 10
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 8GB
- Supported RAID levels - RAID-5, RAID-6, RAID-10, RAID-50, RAID-60, RAID-1, RAID-0
- Support for JBOD mode - Yes
- Controller connectors - 1xPERC HD
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS3508 Dual Core ARM A15 Processor ROC
- Support for 4KN drives - Yes
- Number of SAS ports - 8
- Host bus - PCIe 3.1x8
- RAID protection - NV-RAM
- Data transfer per port - 12Gb
- RAM type - DDR4
- RAM clock frequency - 2133MHz
- Controller type - RAID controller

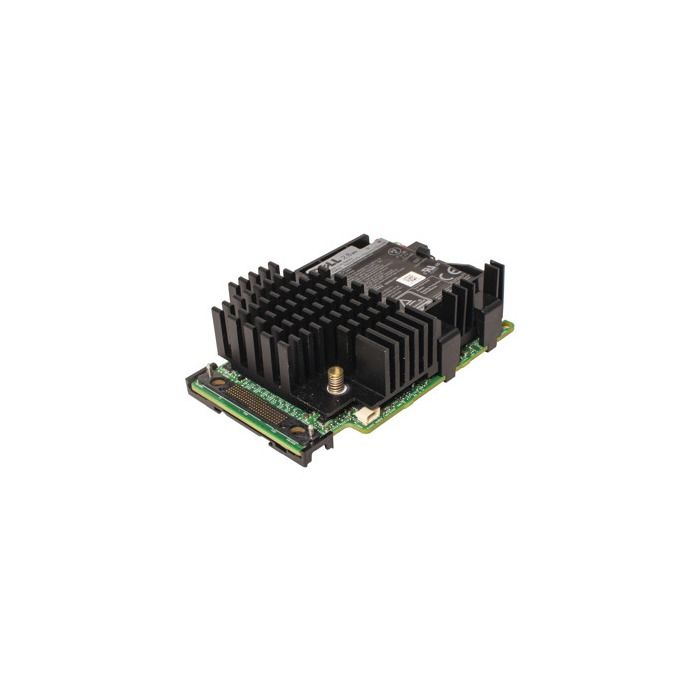

- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R640, PowerEdge R640 10x2.5", PowerEdge R640 4x3.5", PowerEdge R640 4x3.5" 2x2.5", PowerEdge R640 8x2.5", PowerEdge R640 diskless, PowerEdge R6415, PowerEdge R6415 10x2.5", PowerEdge R6415 4x3.5", PowerEdge R6415 8x2.5", PowerEdge R740, PowerEdge R740 16x2.5", PowerEdge R740 8x2.5", PowerEdge R740 8x3.5", PowerEdge R740 diskless, PowerEdge R740xd, PowerEdge R740xd 12x3.5", PowerEdge R740XD 12x3.5" 4x3.5" 2x3.5", PowerEdge R740xd 24x2.5", PowerEdge R740xd 24x2.5" 4x2.5" |
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Support for JBOD mode | Yes |
| Controller connectors | DELL PERC MINI SAS HD |
| Supported disk interfaces | SAS 12Gb/s |
| Chipset | LSI SAS3508 |
| Support for 4KN drives | Yes |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.1 |
| RAID protection | NV-RAM |
| Data transfer per port | 12Gb/s |
| RAM type | DDR4 |
| Card type | Mini mono |
| Cache size | 8GB |
| RAM clock frequency | 2133MHz |
