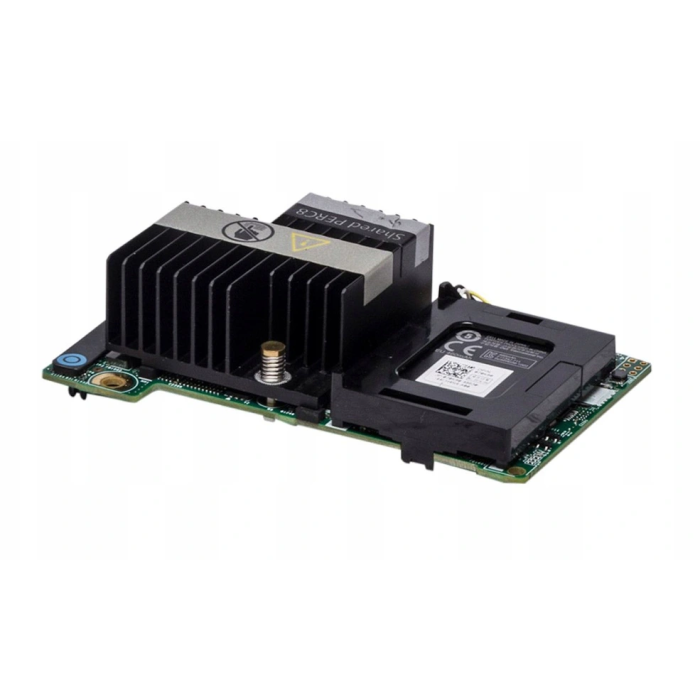

RAID Controller Dell PERC8 Shared 1GB Mini mono PCI-E 2.0 12Gb SAS P3WV4
Manufacturer: Dell
PN: P3WV4
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 1GB
- Supported RAID levels - RAID-6, RAID-10, RAID-50, RAID-60, RAID-5, RAID-1, RAID-0
- Controller connectors - 1xPERC
- Supported disk interfaces - 6Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS2208
- Support for 4KN drives - No
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- Data transfer per port - 6Gb
- RAM type - DDR3
- RAM clock frequency - 1333MHz
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Controller connectors | DELL PERC MINI SAS |
| Supported disk interfaces | SAS 6Gb/s |
| Chipset | LSI SAS2208 |
| Support for 4KN drives | No |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 2.0 |
| Data transfer per port | 6Gb/s |
| RAM type | DDR3 |
| Card type | Mini mono |
| Cache size | 1GB |
| RAM clock frequency | 1333MHz |
