RAID controller EMC PCI-Express 3.0 SATA / SAS 12Gb/s H3-25460-02H
Manufacturer: EMC
PN: H3-25460-02H
Loading...
Calculating delivery time...In stock: 50
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Support for JBOD mode - Yes
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 2x SFF-8644
- Supported disk interfaces - 6Gb SATA, 12Gb SAS
- Maximum number of drives - 1024
- Chipset - LSI SAS3008
- Support for 4KN drives - Yes
- Number of SAS ports - 2
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- Controller type - HBA SAS card
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.

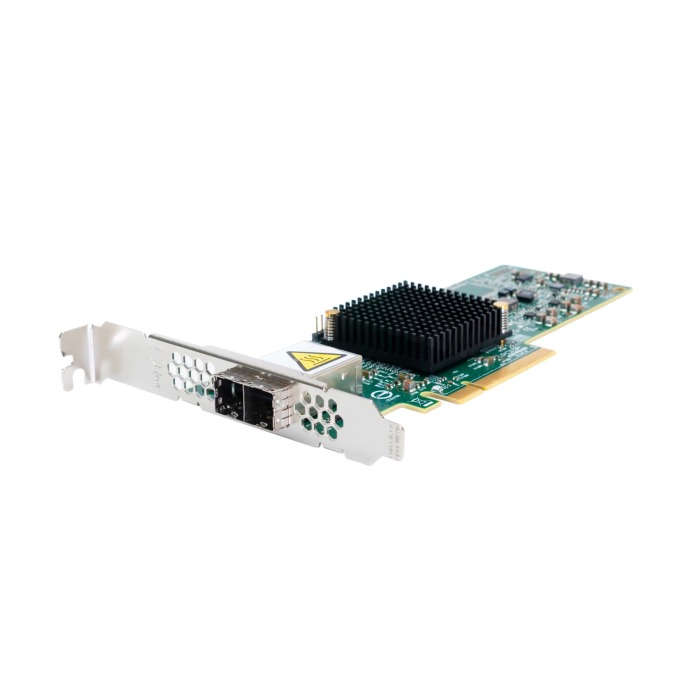

The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | EMC |
|---|---|
| Product type | RAID controller |
| Controller type | HBA SAS card |
| Maximum number of drives | 1024 |
| Support for JBOD mode | Yes |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 2x SFF-8644 |
| Supported disk interfaces | SAS 12Gb/s, SATA 6Gb/s |
| Chipset | LSI SAS 3008 |
| Support for 4KN drives | Yes |
| Number of SAS ports | 2 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| Card type | Adapter |
