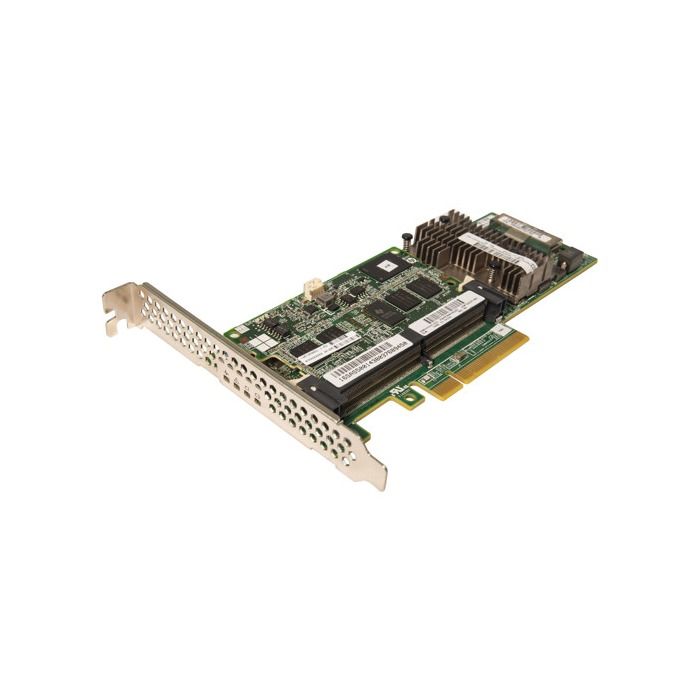

RAID Controller HPE Smart Array P440 4GB Adapter PCI-E 3.0x8 1xSFF-8087 Internal 12Gb SAS 6Gb SATA 726823-001
Manufacturer: HPE
PN: 726823-001
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 4GB
- Supported RAID levels - RAID-0, RAID-1, RAID-5, RAID-6, RAID-10, RAID-50, RAID-60
- Controller connectors - 1x SFF-8087
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 200
- Number of SAS ports - 8
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- RAM type - DDR3
- RAM clock frequency - 1866MHz
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | HPE |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 200 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Controller connectors | 1x SFF-8087 |
| Supported disk interfaces | SAS 12Gb/s |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| RAM type | DDR3 |
| Card type | Adapter |
| Cache size | 4GB |
| RAM clock frequency | 1866Mhz |
