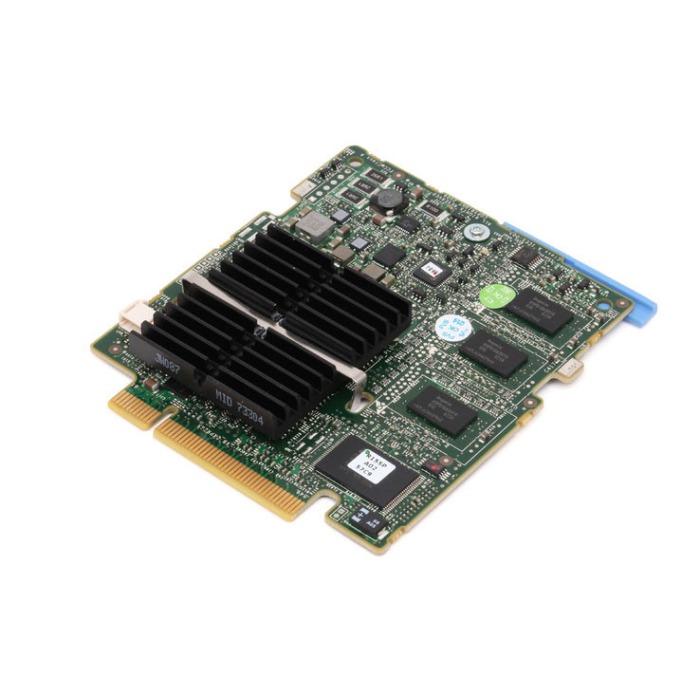

Storage controller Dell H700 512MB Adapter 3Gb SAS PCIe 2.0x8 F2WGY
Manufacturer: Dell
PN: F2WGY
Loading...
Calculating delivery time...In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 512MB
- Supported RAID levels - RAID-6, RAID-0, RAID-1, RAID-60, RAID-50, RAID-10, RAID-5
- Controller connectors - 2x SFF-8087
- Supported disk interfaces - 3Gb SAS
- Maximum number of drives - 16
- Support for 4KN drives - No
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- Data transfer per port - 6Gb
- RAM type - DDR2
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Dell |
|---|---|
| Controller type | RAID controller |
| Maximum number of drives | 16 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Controller connectors | 2x SFF-8087 |
| Supported disk interfaces | SAS 3Gb/s |
| Support for 4KN drives | No |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 2.0 |
| Data transfer per port | 6Gb/s |
| RAM type | DDR2 |
| Card type | Adapter |
| Cache size | 512MB |
