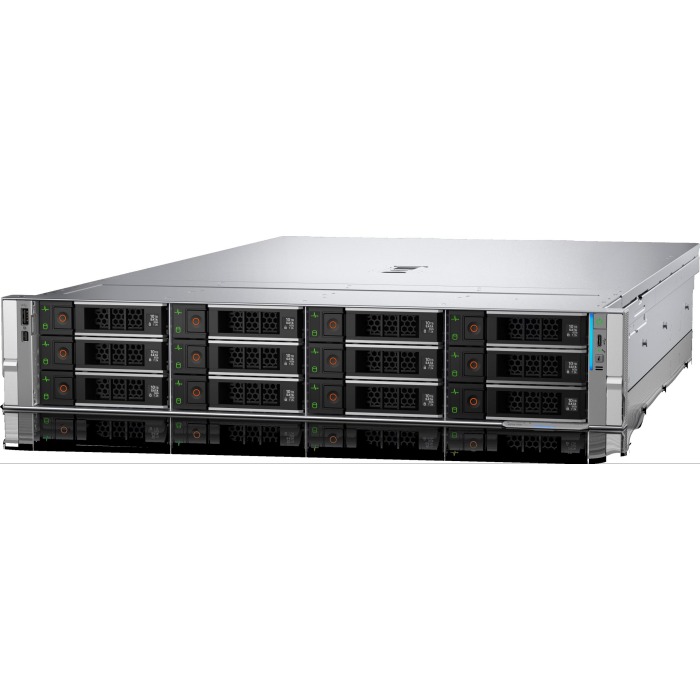

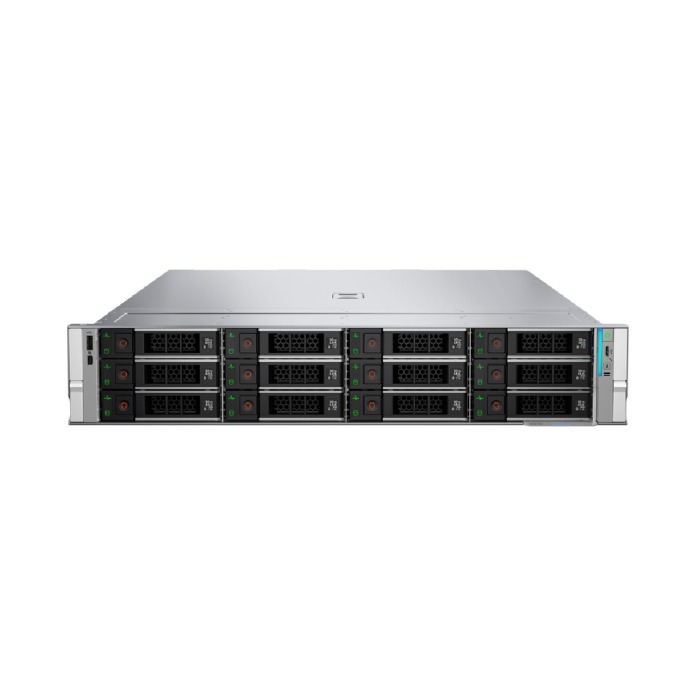

Server Dell PowerEdge R570 12x3.5" with 1x 6511P, 16GB RAM, H365i, 1x 600GB 10K SAS 2.5", 2x PSU, rails, iDRAC 10

Technical information about the R570 server model line.

• Server height: 2U
• Server depth: 82cm
• Server weight: 31kg
• Chassis types: 12x3.5", 8x2.5", 16x2.5", 24x2.5", 8xE3.S, 16xE3.S or 32xE3.S
• Number of processors: maximum 21 x CPU Intel Xeon 6 E-core up to 144-core or Intel Xeon 6 P-core up to 86-core
• Maximum number of processor cores: 1x 144-core / 288-thread CPU
• Number of RAM banks: 16 DDR4
• Maximum RAM size: 16x 256GB DDR5 RDIMM total 4TB
• Number of drive bays: 12x3.5", 8x2.5", 16x2.5", 24x2.5", 8xE3.S, 16xE3.S or 32xE3.S
• Number of USB ports: 5 (2x front, 1x inside, 2x rear)
• Number of PCI-E slots: up to 4x (3xPCI-E GEN 4 x16, 1x PCI-E GEN 3 x4)
• Maximum number of power supplies: 2
• Supported power supplies: 800W, 1100W, 1500W or1800W
• Remote management: iDRAC 10
• Supported internal RAID controllers: H975i, H965i, H365 or S160

Optional accessories for the R570 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
