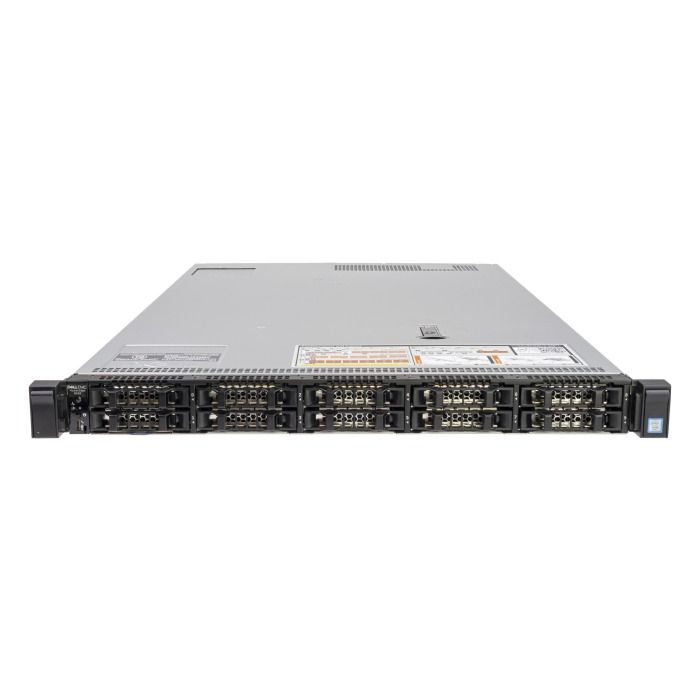

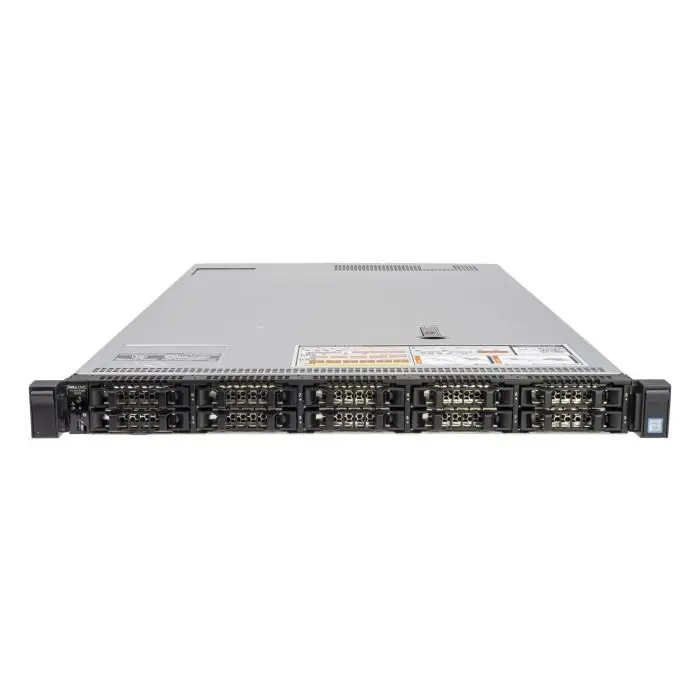

Server Dell PowerEdge R630 10x2.5" with 2x E5-2620 v3, 32GB RAM, H730, 4x 600GB SAS 2.5", 4x1GbE, 2xPSU, Rails, iDRAC 8 Enterprise

• Server height: 1U
• Server depth: 76cm
• Maximum server weight: 25kg
• Chassis types: 8x2.5", 10x2.5" or 24x1.8"
• Number of processors: maximum 2 x CPU socket R 2011 E5-26xx v3/v4 (acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores: 2x 22-core / 44-thread CPU total 44-core / 88-thread
• Number of RAM banks: 24 DDR4
• Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
• Number of drive bays: 8x2.5", 10x2.5" or 24x1.8"
• Motherboard chipset: Intel C610
• Number of USB ports: 5 (2x front, 2x rear, 1x internal)
• Number of PCI-E slots: 3x PCI-E gen 3 (2x PCI-E x16, 1x PCI-E x8) lub 2x PCI-E gen 3 (2x PCI-E x16)
• Maximum number of power supplies: 2
• Supported power supplies: 495W, 750W lub 1100W
• Remote management: iDRAC 8
• Graphics card: Matrox G200 16MB
• Supported internal RAID controllers: H330, HBA330, H730 1GB NV RAM, H730p 2GB NV RAM

Optional accessories for the R630 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

With the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
