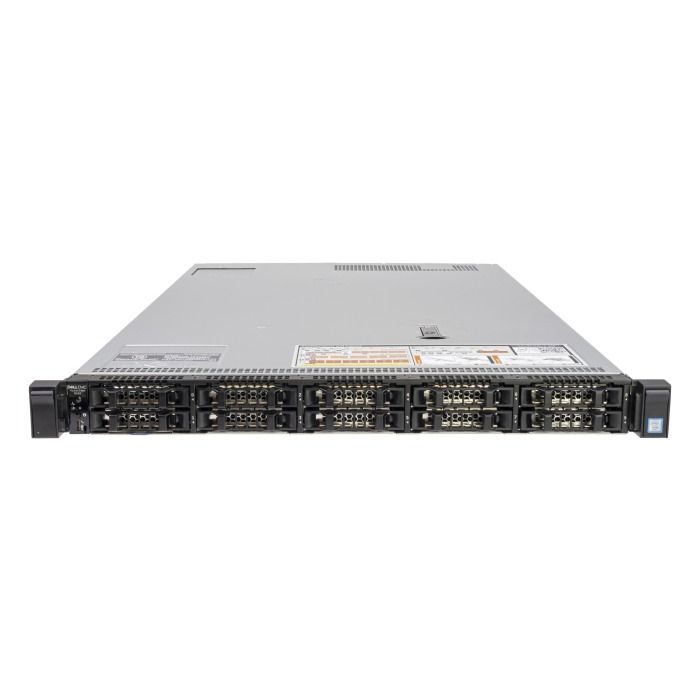

Server Dell PowerEdge R630 10x2.5" with 2x E5-2660 v3, 128GB RAM, H730, 4x 960GB SSD SATA 2.5", 4x1GbE, 2x PSU, Rails, iDRAC 8 Enterprise
Manufacturer: Dell
PN: R630-10x2.5-2xE5-2660v3-128GB-H730-V03
Loading...
Calculating delivery time...In stock: 4
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R630 10x2.5" server platform
- 2x Intel Xeon E5-2660 v3 10-core 2.6GHz 25MB 105W SR1XR processor
- 8x RAM 16GB 2133MHz DDR4 RDIMM
- 4x Hard drive 960GB SSD SATA 2.5"
- 4x 2.5" drive tray
- 1x Dell PERC H730 Mini mono RAID controller
- 1x Dell PowerEdge R630 10x2.5" SAS cable
- 1x Dell 4x1GbE rNDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the Dell PowerEdge R630 server
- Server height: 1U
- Server depth: 76cm
- Maximum server weight: 25kg
- Chassis types: 8x2.5", 10x2.5" or 24x1.8"
- Number of processors: maximum 2 x CPU socket R 2011 E5-26xx v3/v4 (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 22-core / 44-thread CPU total 44-core / 88-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
- Number of drive bays: 8x2.5", 10x2.5" or 24x1.8"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x rear, 1x internal)
- Number of PCI-E slots: 3x PCI-E gen 3 (2x PCI-E x16, 1x PCI-E x8) lub 2x PCI-E gen 3 (2x PCI-E x16)
- Maximum number of power supplies: 2
- Supported power supplies: 495W, 750W lub 1100W
- Remote management: iDRAC 8
- Graphics card: Matrox G200 16MB
- Supported internal RAID controllers: H330, HBA330, H730 1GB NV RAM, H730p 2GB NV RAM
Optional accessories for the R630 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
With the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R630 10x2.5" |
| Suma mocy zasilaczy | 990 W |
| CPU Cores | 20 |
| Single CPU PassMark score | 13120 |
| CPU Base Frequency | 2.6 GHz |
| RAM Capacity | 128 GB |
| Klasa sprawności zasilacza | 80+ Platinum |
| Ilość zainstalowanych zasilaczy | 2 |
| Ilość portów 32Gb FC | 0 |
| TDP procesora | 105 W |
| Częstotliwość turbo taktowania procesora | 3.3 GHz |
| Ilość wątków w procesorze | 20 |
| Ilość wątków | 40 |
| Maksymalna ilość procesorów | 2 |
| Ilość zainstalowanych procesorów | 2 |
| Głębokość serwera | 75.510002 cm |
| Depth | 48.23 cm |
| Chassis type | Obudowa Rack 1U |
| Core Count | 10 |
| Number of 1GbE RJ45 ports | 4 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
