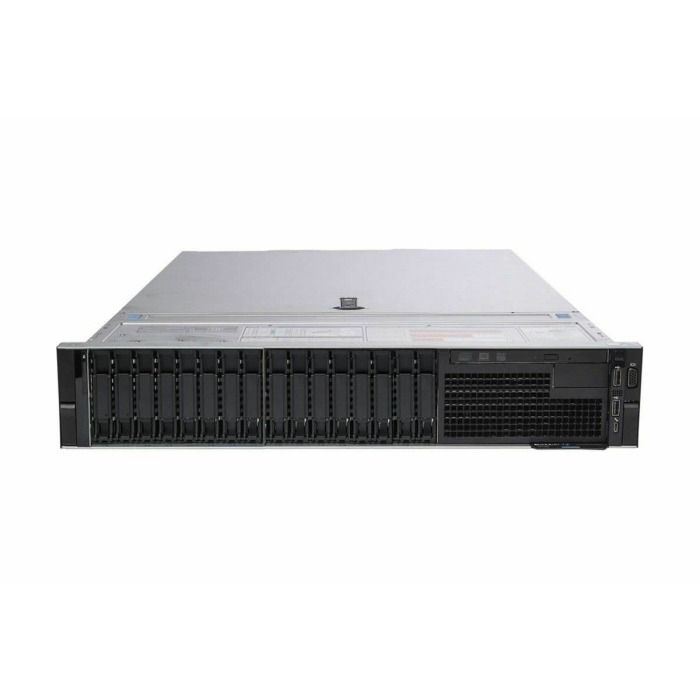

Server Dell PowerEdge R740 16x2.5" with 2x Silver 4210 10-core,128GB RAM, PERC H730P, 8x1.8TB 10K SAS 2.5", HBA NVME card with 2x240GB SSD NVME M.2, 4x1GbE + 2x10GbE SFP+, 2x PSU, rails, cable organizer, caddy set, iDRAC 9 Enterprise
Manufacturer: Dell
PN: R740-16x2.5-2x4210-128GB-H730P-V01
Warranty: 36 months with the possibility of extension
- 1x Platforma serwerowa Dell PowerEdge R740 16x2.5"
- 2x Procesor Intel Xeon Silver 4210 10-core 2.2GHz 13.75MB 85W SRFBL
- 8x Pamięć RAM 16GB 2400MHz DDR4 RDIMM
- 16x Kieszeń na dysk 2.5"
- 1x Kontroler RAID Dell PERC H730P 2GB Mini mono
- 1x Extender NVMe
- 1x Karta sieciowa Dell 4x1GbE rNDC
- 1x Karta sieciowa 2x10GbE SFP+ Adapter
- 2x Zasilacz Dell
- 1x Zestaw szyn
- 1x Kabel SAS Dell PowerEdge R740xd 24x2.5"
Technical information about the R740 server model line.
- Server height: 2U
- Server depth: 71cm
- Server weight: 41kg
- Chassis types: 16x2.5", 8x3.5"
- Number of processors: maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores:: 2x 22-core / 44-thread CPU total 44-core / 88-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
- Number of drive bays: 16x2.5", 8x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 8x PCIe Gen 3
- Maximum number of power supplies:: 2
- Supported power supplies: 495W, 750W, 1100W or 1600W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards
Optional accessories for the R740 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Razem z serwerem możliwy jest zakup systemu operacyjnego
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- She server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
Attention!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R740 16x2.5" |
| Core Count | 10 |
| Number of 1GbE RJ45 ports | 4 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| Chassis type | Obudowa Rack 2U |
| CPU Cores | 20 |
| Suma mocy zasilaczy | 990 W |
| Single CPU PassMark score | 14304 |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Ilość wątków | 40 |
| Ilość wątków w procesorze | 20 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 85 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 128 GB |
