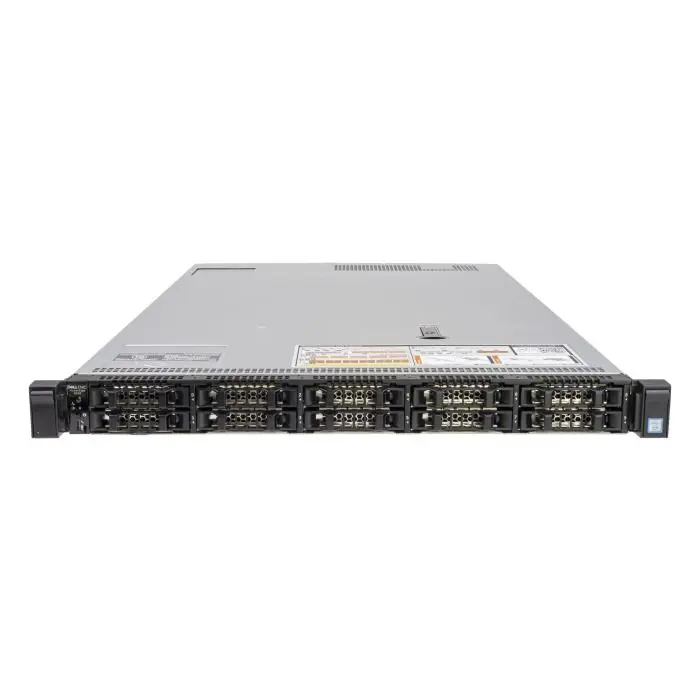

Server Dell R630 10x2.5” with 2xE5-2620 v3, 128GB RAM, H730, 8x1TB SATA 7.2K 2.5”, 4x1GbE, 2xPSU, Rails, iDRAC 8 Enterprise
Manufacturer: Dell
PN: R630-2xE5-2620v3-128GB-H730-V01
Loading...
Calculating delivery time...In stock: 1
Warranty: 36 months with the possibility of extension
The set includes:
- 2x Heatsink Dell PowerEdge R630
- 1x Kontroler RAID Dell H730 1GB Adapter PCI-E 3.0x8 2xSFF-8643 wewnętrzne 12Gb SAS 6Gb SATA 44GNF
- 1x Obudowa serwera Dell PowerEdge R630 10x2.5"
- 1x Licencja Dell iDRAC 8 Enterprise
- 8x Pamięć RAM 16GB PC4-17000R DDR4 RDIMM 2133MHz
- 1x Płyta główna Dell PowerEdge R630 2xCPU 24xDIMM 2C2CP
- 2x Procesor Intel Xeon E5-2620 v3 6-core 2.4GHz 15MB 85W SR207
- 1x Zestaw szyn Dell Typ A7 1U ReadyRails II łożyskowane 6RTCR
- 8x Wentylator Dell PowerEdge R630
- 2x Zasilacz Dell G13 750W 100-240V AC 50/60MHz
Technical information about the Dell PowerEdge R630 server
- Server height: 1U
- Server depth: 76cm
- Maximum server weight: 25kg
- Chassis types: 8x2.5", 10x2.5" or 24x1.8"
- Number of processors: maximum 2 x CPU socket R 2011 E5-26xx v3/v4 (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 22-core / 44-thread CPU total 44-core / 88-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
- Number of drive bays: 8x2.5", 10x2.5" or 24x1.8"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x rear, 1x internal)
- Number of PCI-E slots: 3x PCI-E gen 3 (2x PCI-E x16, 1x PCI-E x8) lub 2x PCI-E gen 3 (2x PCI-E x16)
- Maximum number of power supplies: 2
- Supported power supplies: 495W, 750W lub 1100W
- Remote management: iDRAC 8
- Graphics card: Matrox G200 16MB
- Supported internal RAID controllers: H330, HBA330, H730 1GB NV RAM, H730p 2GB NV RAM
Optional accessories for the R630 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
With the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R630 10x2.5" |
| Core Count | 6 |
| Chassis type | Obudowa Rack 1U |
| CPU Cores | 12 |
| Suma mocy zasilaczy | 1500 W |
| Single CPU PassMark score | 7921 |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Maksymalna ilość procesorów | 2 |
| Ilość wątków | 24 |
| Ilość wątków w procesorze | 12 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 85 W |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 128 GB |
