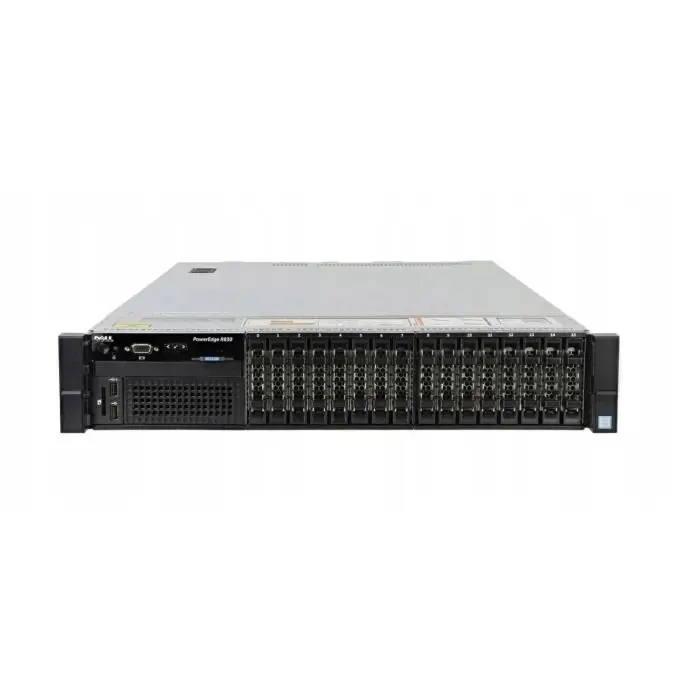

Technical information about the R830 server model line.
Server height: 2U
Server depth: 81cm
Server weight: 32kg
Chassis types: 16x2.5"
Number of processors: up to 4 x CPU Intel Xeon processor E5-4600 v4 product family
Maximum number of CPU cores: 4x 22-core / 44-thread CPU total 88-core / 176-thread
Number of RAM banks: 48 DDR4
Maximum RAM size: 48x128GB DDR4 RDIMM total 6TB
Number of drive bays: 16x2.5"
Motherboard chipset: Intel C612
Number of USB ports: 5 (2x front, 2x back, 1x inside)
Number of PCI-E slots: up to 7x PCIe Gen 3
Maximum number of power supplies: 2
Supported power supplies: 750W, 1100W or 1600W
Remote management: iDRAC 8
Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S830
Optional accessories for the R830 server
The server can be further equipped with optional accessories:
Cable organizer
Empty hard drive bays
Front panel / bezel
Power cables
PCI-E expansion cards
All additional accessories you will find in our offer.
With the server it is possible to purchase the operating system:
Windows Server Standard
Windows Server Essentials
Windows Server Data Center
VMWare (ESXi, vSphere, vSAN)
other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
The server is thoroughly tested, 100% operational and ready for continued long term operation
The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
You are buying the server from an official Dell partner with professional server hardware service
The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
NOTE!
The photos included in the auction are for illustrative purposes only.
Some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
More Information
Manufacturer
Dell
Compatible with
PowerEdge R830 16x2.5"
Core Count
8
Number of 1GbE RJ45 ports
4
Number of 10GbE SFP+ ports
0
Number of 10GbE BASE-T ports
0
Number of 40GbE QSFP+ ports
0
Number of 10/25GbE SFP28 ports
0
Number of 8Gb FC ports
0
Number of 16Gb FC ports
0
Chassis type
Obudowa Rack 2U
CPU Cores
32
Suma mocy zasilaczy
990 W
CPU Base Frequency
2 GHz
Ilość zainstalowanych procesorów
4
Maksymalna ilość procesorów
2
Ilość wątków
64
Ilość wątków w procesorze
16
Częstotliwość turbo taktowania procesora
3 GHz
TDP procesora
135 W
Ilość portów 32Gb FC
0
Ilość zainstalowanych zasilaczy
2
Klasa sprawności zasilacza
80+ Platinum
RAM Capacity
64 GB
