Server Dell R930 24x2.5" with 4x E7-8880v4, 64GB RAM, H730P, 2x960GB SSD SATA 2.5", 4x1GbE, 4xPSU, Rails iDRAC 8 Enterprise
Manufacturer: Dell
PN: R930-24x2.5-4xE7-8880v4-64GB-H730P-V01
Loading...
Calculating delivery time...In stock: 3
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R930 24x2.5" server platform
- 4x Intel Xeon E7-8880 v4 2.20GHZ 55MB 150W SR2S7 processor
- 4x RAM 16GB 2133MHz DDR4 RDIMM
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell H730P 2GB Adapter RAID controller
- 1x Dell PowerEdge R930 24x2.5" SAS cable
- 1x Dell 4x1GbE RJ45 network card
- 4x Dell power supply
- 1x Rail kit
Technical information about the R930 server model line.
- Server height: 4U
- Server depth: 81cm
- Server weight: 59kg
- Chassis types: 4x2.5" or 24x2.5"
- Number of processors: up to 4 x Intel Xeon processor CPU E5-8800 v4 or E5-4800 v4
- Maximum number of CPU cores: 4x 18-core / 36-thread CPU total 72-core / 144-thread
- Number of RAM banks: 96 DDR4
- Maximum RAM size: 96x128GB DDR4 RDIMM total 12TB
- Number of drive bays: 4x2.5" or 24x2.5"
- Motherboard chipset: Intel C602J
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 10x PCIe Gen 3
- Maximum number of power supplies: 4
- Supported power supplies: 750W or 1100W
- Remote management: iDRAC 8
- Supported internal RAID controllers: H330, PERC H730P or H830
Optional accessories for the R930 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!

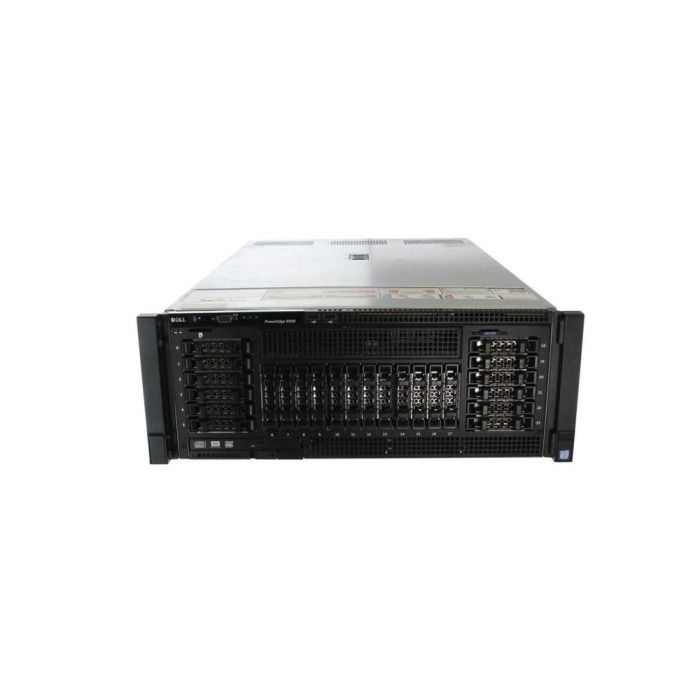

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R930 24x2.5", PowerEdge R930 4x2.5" |
| Core Count | 22 |
| Number of 1GbE RJ45 ports | 4 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| CPU Cores | 88 |
| Suma mocy zasilaczy | 1980 W |
| CPU Base Frequency | 2 GHz |
| Ilość zainstalowanych procesorów | 4 |
| Ilość wątków | 176 |
| Ilość wątków w procesorze | 44 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 150 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 4 |
| Klasa sprawności zasilacza | 80+ Platinum |
| RAM Capacity | 64 GB |
| Depth | 48 cm |
