Technical information about the DL60 Gen9 server model line.

• Server height: 1U
• Server depth: 61cm
• Server weight: 17kg
• Chassis types: 4x3.5"
• Number of processors: maximum 2 x CPU socket R 2011 E5-26xx v3/v4
• Maximum number of processor cores: 2x 14-core / 28-thread total 28-core / 56-thread
• Number of RAM banks: 8 DDR4
• Maximum RAM size: 8x32GB DDR4 RDIMM total 256TB
• Number of drive bays: 4x3.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 4 (1x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 3x PCIe Gen 3
• Maximum number of power supplies: 2
• Supported power supplies: 500W or 900W
• Remote management: iLO5 Advanced
• Supported internal RAID controllers: B140i, P440, P441

Optional accessories for the DL60 Gen9 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. For more details, please see the corresponding tab.

Attention!

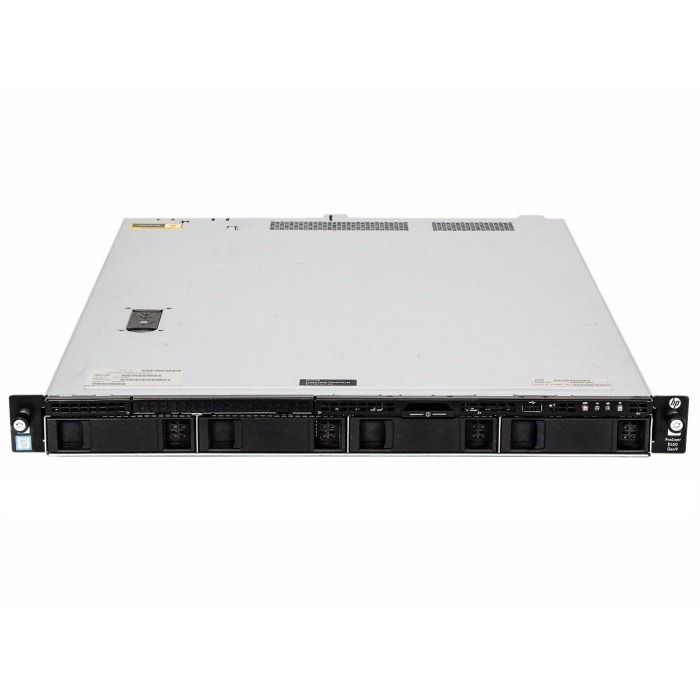

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
