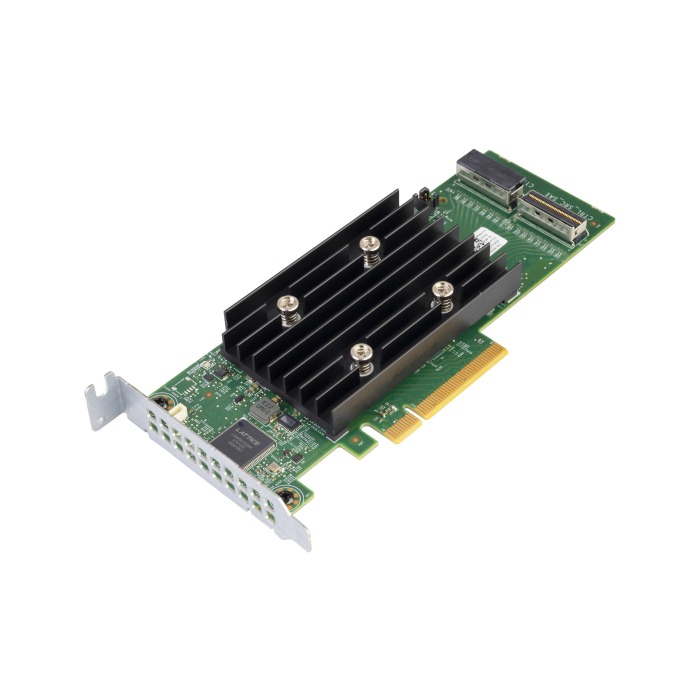

Storage controller RAID Dell Perc H345 12 Gb/s PCIe SAS 7T7VJ
Manufacturer: Dell
PN: 7T7VJ
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Supported RAID levels - RAID-0, RAID-1, RAID-10
- Support for JBOD mode - Yes
- Non-raid mode support - Yes
- Passthrough mode support - Yes
- Controller connectors - 2x SFF-8654
- Supported disk interfaces - 12Gb SAS
- Maximum number of drives - 53
- Chipset - LSI SAS3416
- Support for 4KN drives - Yes
- Number of SAS ports - 16
- Host bus - PCIe 3.0x8
- Data transfer per port - 12Gb
- Controller type - RAID controller
Before buying one, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | Dell |
|---|---|
| Product type | RAID controller |
| Controller type | RAID controller |
| Maximum number of drives | 53 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10 |
| Support for JBOD mode | Yes |
| Non-raid mode support | Yes |
| Passthrough mode support | Yes |
| Controller connectors | 2x SFF-8654 |
| Supported disk interfaces | SAS 12Gb/s |
| Chipset | LSI SAS 3416 |
| Support for 4KN drives | Yes |
| Number of SAS ports | 16 |
| Host bus | 8-lane PCIe 3.0 |
| Data transfer per port | 12Gb/s |
| Card type | Adapter |
