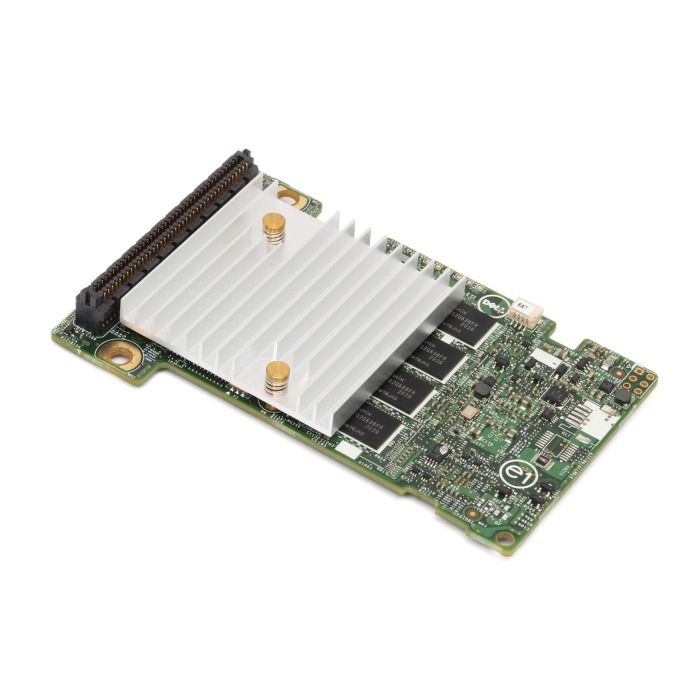

Storage controller RAID Dell Perc H710P 1GB Mini mono PCIe 2.0x8 internal 6Gb SAS 81J2H
Manufacturer: Dell
PN: 81J2H
Available for pickup on Monday 10:00
In stock: 3
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Mini mono
- Cache size - 1GB
- Supported RAID levels - RAID-0, RAID-1, RAID-5, RAID-6, RAID-10, RAID-50, RAID-60
- Supported disk interfaces - 6Gb SATA, 6Gb SAS
- Maximum number of drives - 32
- Chipset - LSI SAS2208
- Support for 4KN drives - No
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- RAID protection - NV-RAM
- Data transfer per port - 6Gb
- RAM type - DDR3
- Controller type - RAID controller
- The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
- The offered controller is designed to work in a server. Before purchasing, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers. If you have any doubts, we can advise and help you choose the right controller for your specific solution.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R520, PowerEdge R520 8x3.5", PowerEdge R620, PowerEdge R620 10x2.5", PowerEdge R620 4x2.5", PowerEdge R620 4x2.5" 2xExpress Flash, PowerEdge R620 6x2.5", PowerEdge R620 8x2.5", PowerEdge R720, PowerEdge R720 16x2.5", PowerEdge R720 8x2.5", PowerEdge R720 8x3.5", PowerEdge R720XD, PowerEdge R720XD 12x3.5", PowerEdge R720XD 12x3.5" 2x2.5", PowerEdge R720XD 24x2.5", PowerEdge R720XD 24x2.5" 2x2.5" |
| Controller type | RAID controller |
| Maximum number of drives | 32 |
| Supported RAID levels | RAID-0, RAID-1, RAID-10, RAID-5, RAID-50, RAID-6, RAID-60 |
| Supported disk interfaces | SAS 6Gb/s, SATA 6Gb/s |
| Chipset | LSI SAS2208 |
| Support for 4KN drives | No |
| Number of SAS ports | 8 |
| Host bus | 8-lane PCIe 2.0 |
| RAID protection | NV-RAM |
| Data transfer per port | 6Gb/s |
| RAM type | DDR3 |
| Card type | Mini mono |
| Cache size | 1GB |
