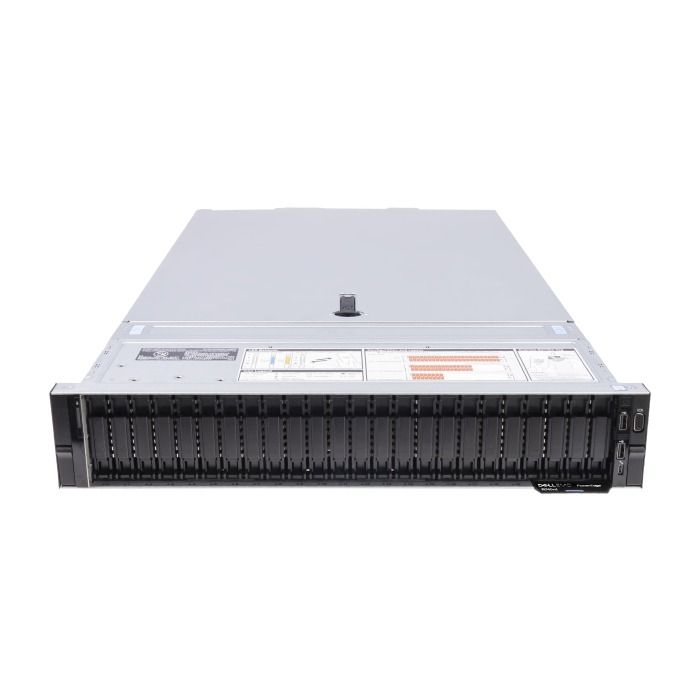

Server Dell PowerEdge R740xd 24x2.5" 8xNVMe with 2x Silver 4208, 32GB RAM, H730P, 2x480GB SSD SATA 2.5", 4x1GbE, 2xPSU, Rails, iDRAC 9 Enterprise
Manufacturer: Dell
PN: R740XD-24x2.5-8xNVME-2x4208-32GB-H730P-V01
Loading...
Calculating delivery time...In stock: 8
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R740XD 12x3.5" server platform
- 2x Intel Xeon Silver 4208 8-core 2.1GHz 11MB 85W SRFBM processor
- 2x RAM 16GB 2400MHz DDR4 RDIMM
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell PERC H730P 2GB Mini mono RAID controller
- 1x Dell PowerEdge R740xd 24x2.5" SAS cable
- 2x Extender NVMe
- 1x NVMe cables for 24x2.5" NVMe
- 1x Dell 4x1GbE rNDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the R740xd server model line.
- Server height: 2U
- Server depth: 71cm
- Server weight: 41kg
- Chassis types: 24x2.5", 12x3.5"
- Number of processors: maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores:: 2x 28-core / 56-thread CPU total 56-core / 112-thread
- Number of RAM banks: 24 DDR4
- Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
- Number of drive bays: 24x2.5", 12x3.5"
- Motherboard chipset: Intel C610
- Number of USB ports: 5 (2x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 8x PCIe Gen 3
- Maximum number of power supplies:: 2
- Supported power supplies: 495W, 750W, 1100W or 1600W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards
Optional accessories for the R740xd server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Razem z serwerem możliwy jest zakup systemu operacyjnego
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- She server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
Manufacturer | Dell |
---|---|
Suma mocy zasilaczy | 990 W |
CPU Cores | 16 |
Single CPU PassMark score | 11163 |
CPU Base Frequency | 2.1 GHz |
RAM Capacity | 32 GB |
Klasa sprawności zasilacza | 80+ Platinum |
Ilość zainstalowanych zasilaczy | 2 |
Ilość portów 32Gb FC | 0 |
TDP procesora | 85 W |
Częstotliwość turbo taktowania procesora | 3.2 GHz |
Ilość wątków w procesorze | 16 |
Ilość wątków | 32 |
Ilość zainstalowanych procesorów | 2 |
Głębokość serwera | 71.55 cm |
Depth | 43.4 cm |
Chassis type | Obudowa Rack 2U |
Core Count | 8 |
Number of 1GbE RJ45 ports | 4 |
Number of 10GbE SFP+ ports | 0 |
Number of 10GbE BASE-T ports | 0 |
Number of 40GbE QSFP+ ports | 0 |
Number of 10/25GbE SFP28 ports | 0 |
Number of 8Gb FC ports | 0 |
Number of 16Gb FC ports | 0 |
