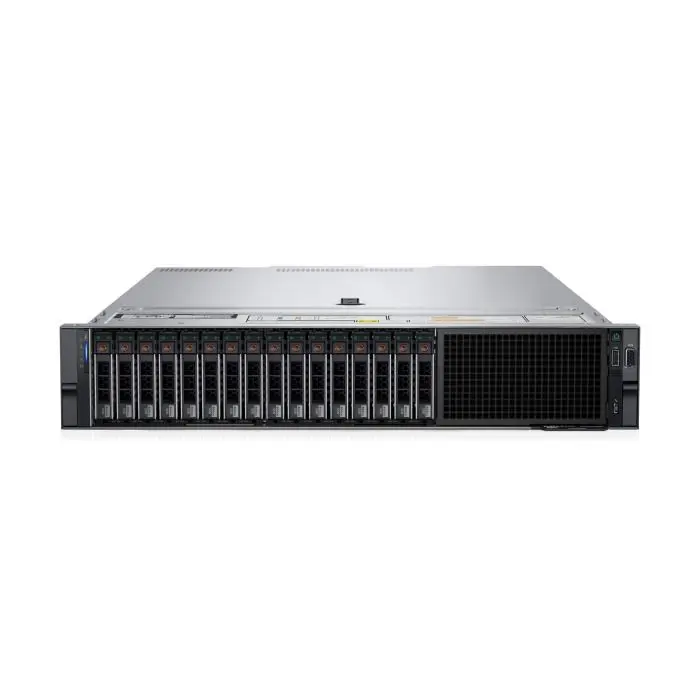

Server Dell R550 16x2.5" with 2x Gold 5320, 128GB RAM, H355, 2x480GB SSD SATA 2.5", 2xPSU, Rails, iDRAC9

Technical information about the R550 server model line.

• Server height: 2U
• Server depth: 68cm
• Server weight: 25kg
• Chassis types: 8x3.5", 8x2.5" or 16x2.5"
• Number of processors: maximum 2 x CPU 3nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores: 2x 24-core / 48-thread CPU total 48-core / 96-thread
• Number of RAM banks: 16 DDR4
• Maximum RAM size: 16x 64GB DDR4 RDIMM total 1024GB
• Number of drive bays: 8x3.5", 8x2.5" or 16x2.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 2 (1x front, 1x rear)
• Number of PCI-E slots: up to 4x (3xPCI-E GEN 4 x16, 1x PCI-E GEN 3 x4)
• Maximum number of power supplies: 2
• Supported power supplies: 600W, 700W, 800W AC or 1100W DC
• Remote management: iDRAC 9
• Supported internal RAID controllers: S150, PERC H345, PERC H355, HBA355i, PERC H745, PERC H755

Optional accessories for the R550 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
