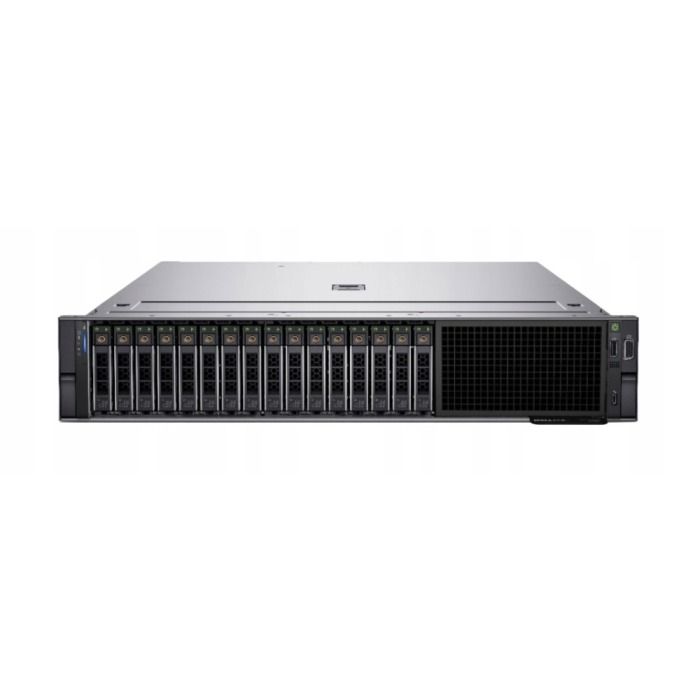

Server Dell R750 16x2.5" with 2x Gold 6346, 32GB, H755, 2x960GB SSD SATA 2.5", 2xPSU, Rails, iDRAC9 Enterprise
Manufacturer: Dell
PN: R750-16x2.5-2x6346-32GB-H755-V01
Loading...
Calculating delivery time...In stock: 1
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R750 16x2.5" server platform
- 2x Intel Xeon Gold 6346 16-core 3.1GHz 36MB 205W SRKHN processor
- 2x RAM 16GB 3200MHz RDIMM DDR4
- 2x Hard drive 960GB SSD SATA 2.5"
- 2x 2.5" drive tray
- 1x Dell H755 RAID Controller Front PERC
- 1x Dell 2x1GbE RJ45 NDC network card
- 2x Dell power supply
- 1x Rail kit
Technical information about the Dell PowerEdge R750 server
- Server height: 2U
- Server depth: 78cm
- Maximum server weight: 33kg
- Chassis types: 12x3.5", 16x2.5", 24x2.5" lub 8x2.5 NVMe
- Number of processors: up to 2 x Intel Xeon Scalable 3rd-generation (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 40-core / 80-thread CPU total 80-core / 160-thread
- Number of RAM banks: 32 DDR4
- Maximum RAM size: 32x128GB DDR4 RDIMM total 8TB
- Number of USB ports:: 4 (1x front, 2x back, 1x inside)
- Number of PCI-E slots: 8x PCI-E Gen 4
- Maximum number of power supplies: 2
- Supported power supplies: 800W, 1100W, 1400W or 2400W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H745, HBA355I, H345, H755, H755N H840, HBA355E and S150
Optional accessories for the R750 server
The server can be further equipped with optional accessories:
- Mounting rails
- Cable organizer
- Empty hard drive bays
- Front panel / bezel
- Power cables
- PCI-E expansion cards
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | Dell |
|---|---|
| Compatible with | PowerEdge R750 16x2.5" |
| Core Count | 16 |
| Number of 1GbE RJ45 ports | 2 |
| Number of 10GbE SFP+ ports | 0 |
| Number of 10GbE BASE-T ports | 0 |
| Number of 40GbE QSFP+ ports | 0 |
| Number of 10/25GbE SFP28 ports | 0 |
| Number of 8Gb FC ports | 0 |
| Number of 16Gb FC ports | 0 |
| CPU Cores | 32 |
| Suma mocy zasilaczy | 1600 W |
| CPU Base Frequency | 3 GHz |
| Ilość zainstalowanych procesorów | 2 |
| Maksymalna ilość procesorów | 2 |
| Ilość wątków | 64 |
| Ilość wątków w procesorze | 32 |
| Częstotliwość turbo taktowania procesora | 3 GHz |
| TDP procesora | 205 W |
| Ilość portów 32Gb FC | 0 |
| Ilość zainstalowanych zasilaczy | 2 |
| Klasa sprawności zasilacza | 80+ Platinum |
| Głębokość serwera | 0 mm |
| RAM Capacity | 0 |
| Depth | 43 cm |
