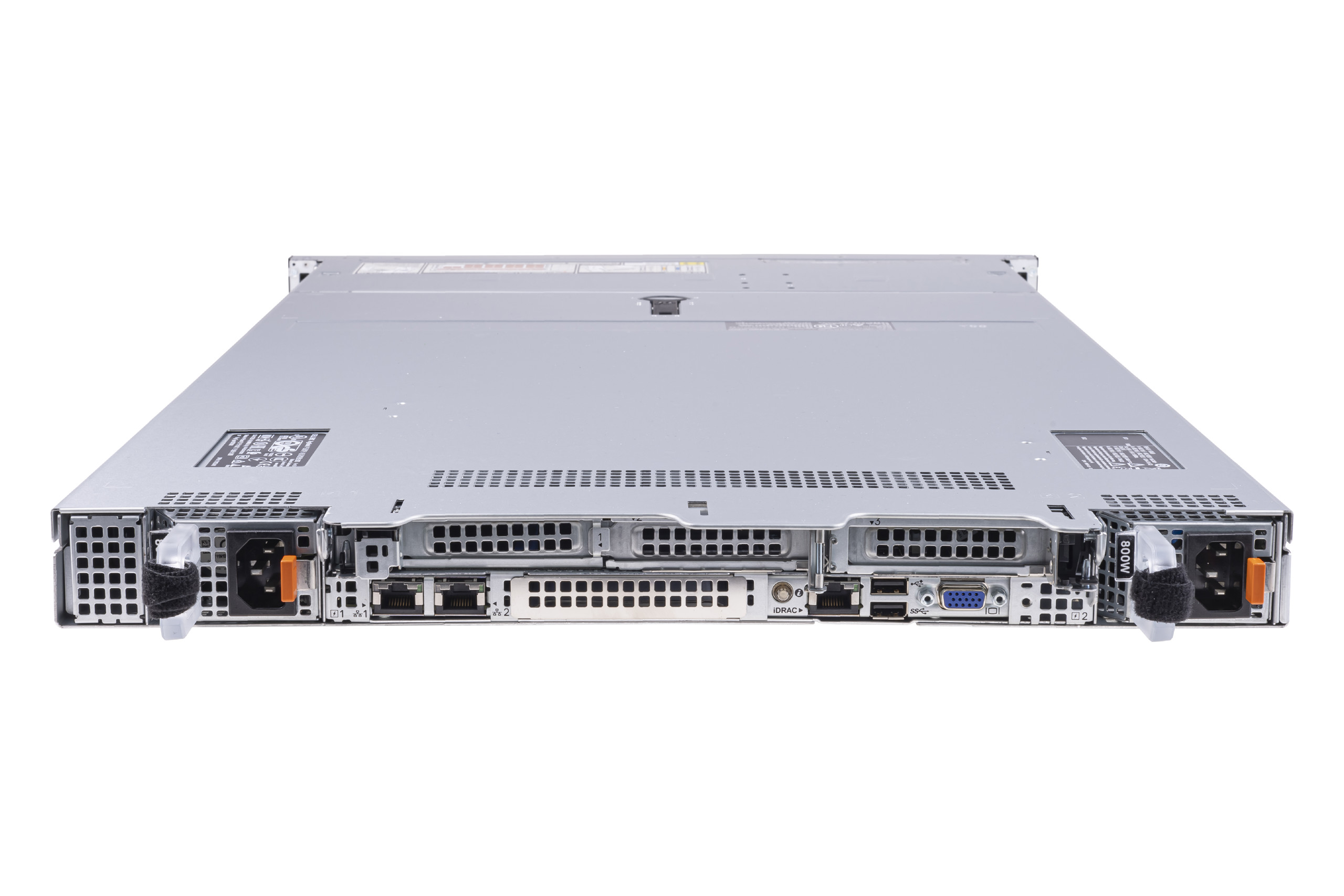

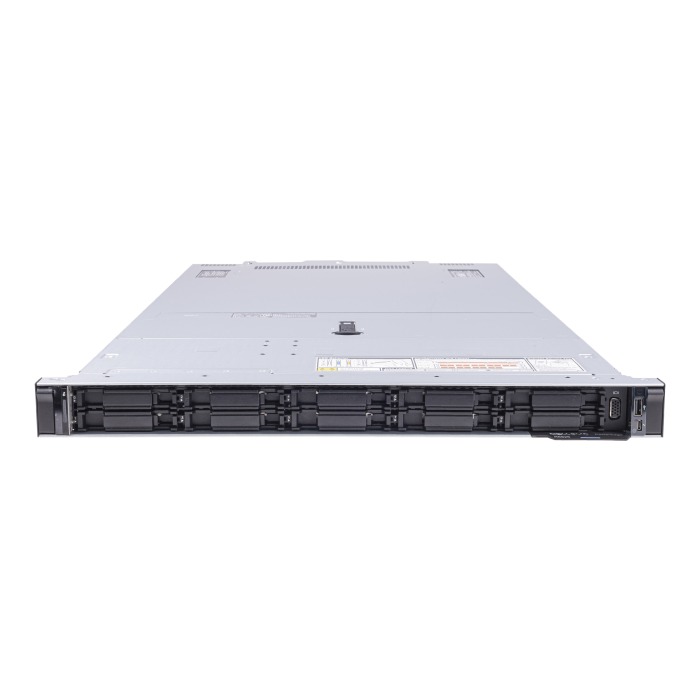

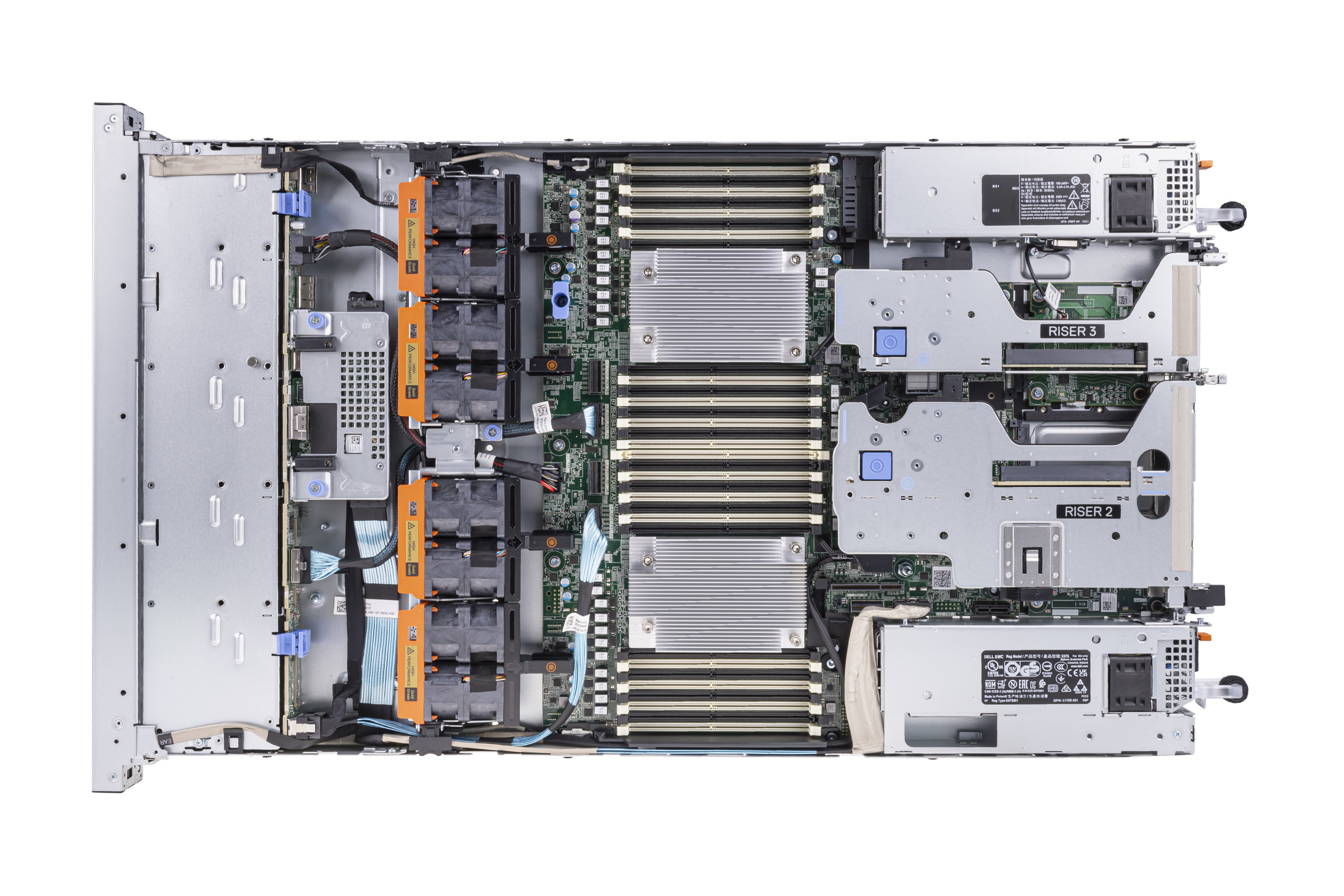

Server Dell PowerEdge R660 10x2.5" NVMe with 2x EPYC 9124, 128GB RAM, 1x Dell 960GB SSD NVMe U.2 2.5", 2x PSU 1100W, rails, bezel, iDRAC9 Enterprise

Technical information about the R6525 server model line.

• Server height: 1U
• Server depth: 74cm
• Server weight: 22kg
• Number of processors: 10x2.5", 8x2.5", 4x3.5"
• Number of processors: maximum 2 x CPU 2nd&3rd Generation AMD Epyc processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores: 2x 64-core / 128-thread CPU total 128-core / 256-thread
• Number of RAM banks: 32 DDR4
• Maximum RAM size: 32x128GB DDR4 RDIMM total 4TB
• Number of drive bays: 10x2.5", 8x2.5", 4x3.5"
• Number of USB ports: 5 (2x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 4x PCIe Gen 4 ( 3xPCIe, 1xOCP)
• Maximum number of power supplies: 2
• Supported power supplies: 800W, 1100W or 1400W
• Remote management: iDRAC 9
• Supported internal RAID controllers: HBA345, H345, H745, H840, H755, H755N and S150

Optional accessories for the R6525 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such asSQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

Attention!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
