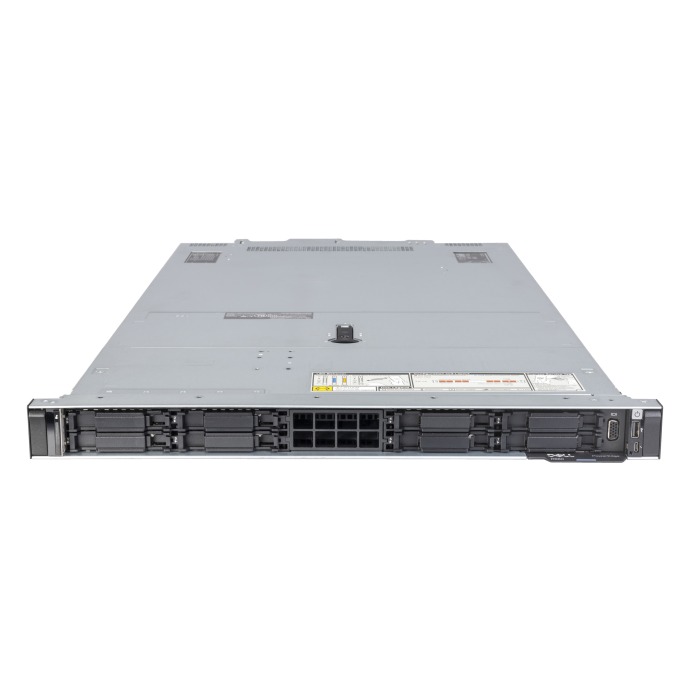

Server Dell PowerEdge R660 8x2.5" with 2x Gold 6434, 256GB RAM, H755, 2x 480GB SSD SATA 6G RI 2.5", 2x10/25GbE SFP28, 2x PSU, rails, iDRAC 9
Manufacturer: Dell
PN: R660-8x2.5-2x6434-256GB-H755-V01
Loading...
Calculating delivery time...In stock: 2
Warranty: 36 months with the possibility of extension
- 1x Dell PowerEdge R660 8x2.5" server platform
- 2x Processor Intel Xeon Gold 6434 8-core 3.7GHz 22.5MB 195W SRMGD
- 2x Hard drive 480GB SSD SATA 6G RI 2.5"
- 4x Hard drive 1.6TB SSD SAS 12G MU 2.5"
- 6x 2.5" drive tray
- 1x Dell H755 RAID Controller Front PERC
- 1x Broadcom network interface card BCM57414 2x10/25GbE SFP28 PCIe 3.0x8 OCP 3.0
- 2x PSU 1100W 100-240V AC 80+ Platinum
- 1x Static rails A14 1U
- 1x iDRAC9 Enterprise
Technical information about the R660 server model line.
- Server height: 1U
- Server depth: 83cm
- Server weight: 23kg
- Chassis types: 8x2.5“ or 10x2.5”
- Number of processors: maximum 2x 4th generation Intel Xeon Scalable processors (acceptable configurations: 1 or 2 processors)
- Maximum number of processor cores: 2x 56-core / 112-thread, CPU total 112-core / 224-thread CPU 5
- Number of RAM banks: 32 DDR4
- Maximum RAM size: 32x256GB DDR5 RDIMM, total 8TB
- Number of drive bays: 8x2.5“ or 10x2.5”
- Number of USB ports: 4 (1x front, 2x back, 1x inside)
- Number of PCI-E slots: up to 3x PCIe Gen 5 + 1x OCP 3.0
- Maximum number of power: 2
- Supported power supplies: 700W, 800W, 1100W, 1400W or 1800W
- Remote management: iDRAC 9
- Supported internal RAID controllers: H965i, H755, H755N, H355, HBA355i and S160
Optional accessories for the R660 server
The server can be further equipped with optional accessories:
- Cable organizer
- Empty hard drive bays
- Front panel / bezel
- Power cables
- PCI-E expansion cards
All additional accessories you will find in our offer.
Together with the server it is possible to purchase the operating system
- Windows Server Standard
- Windows Server Essentials
- Windows Server Data Center
- VMWare (ESXi, vSphere, vSAN)
- other software such as SQL Server
When you buy this server from Hardware Direct, you can rest assured that:
- The server is thoroughly tested, 100% operational and ready for continued long term operation
- The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
- You are buying the server from an official Dell partner with professional server hardware service
- The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.
ATTENTION!
The photos included in the auction are for illustrative purposes only.
Some elements of the server configuration such as risers may differ from those shown in the photos.
Specifications
| Manufacturer | |
|---|---|
| Compatible with | PowerEdge R660 8x2.5" |
| Condition | Refurbished |
| Number of 10/25GbE SFP28 ports | 2 |
| Total power of installed PSUs | 2200 W |
| CPU Base Frequency | 3.7 GHz |
| Amount of CPUs installed | 2 |
| Total of CPU Threads | 32 |
| Turbo clock frequency | 4.1 GHz |
| TDP procesora | 195 W |
| Total PSUs installed | 2 |
| Chassis type | |
| Total of CPU Cores | |
| Maksymalna ilość procesorów | |
| PSU efficiency class | |
| RAM Capacity |
