Server Dell PowerEdge R7515 12x3.5" with 1x 7702P, 64GB RAM, HBA330, BOSS-S1 with 2x Dell 240GB SSD SATA 6G M.2 2280 RI, 2x10/25GbE SFP28, 2x PSU, rails, iDRAC 9

Technical information about the R7515 server model line.

• Server height: 2U
• Server depth: 65cm
• Server weight: 28kg
• Chassis types: 24x2.5", 12x3.5", 8x3.5"
• Number of processors: maximum 1 x CPU 2nd or 3rd Generation AMD EPYC processor
• Maximum number of CPU cores: 64-core / 128-thread CPU
• Number of RAM banks: 16 DDR4
• Maximum RAM size: 16x128GB DDR4 RDIMM total 2TB
• Number of drive bays: 24x2.5", 12x3.5", 8x3.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 5 (2x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 4x PCIe (2x Gen 4, 2x Gen 3)
• Maximum number of power supplies: 2
• Supported power supplies: 495W, 750W, 1100W or 1600W
• Remote management: iDRAC 9
• Supported RAID controllers: HBA330, H330, H730P, H740P, H840 and S150

Optional accessories for the R7515 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

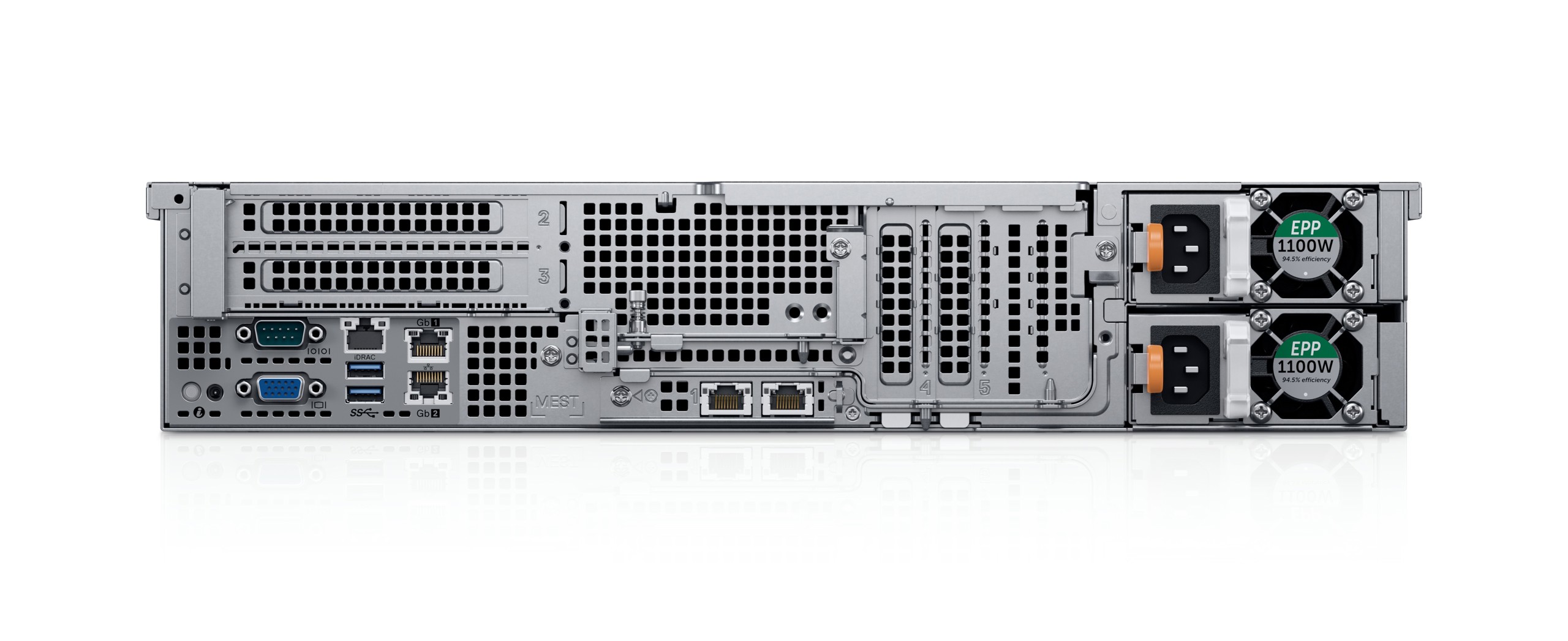

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
