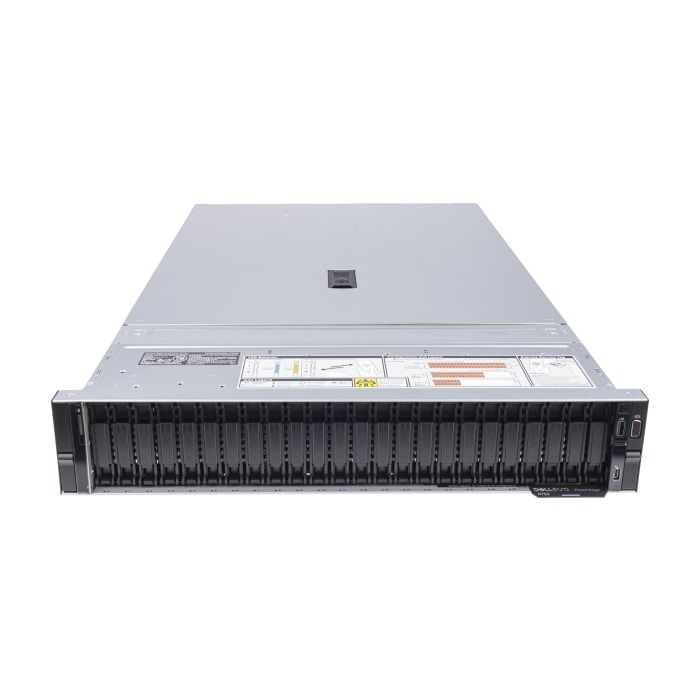

Server Dell R750 24x2.5" (8xNVMe) with 2x Silver 4309Y, 64GB RAM, H755, 2x960GB SSD SATA 2.5", 2xPSU, Rails, iDRAC 9 Enterprise

Technical information about the R750 model line of servers

• Server height: 2U
• Server depth: 78cm
• Server weight: 36kg
• Chassis types: 8x2.5", 12x3.5" or 16x2.5
• Number of processors: maximum 2 x CPU 3nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores: 2x 40-core / 80-thread CPU total 80-core / 160-thread
• Number of RAM banks: 32 DDR4
• Maximum RAM size: 32x128GB DDR4 RDIMM total 4TB
• Number of drive bays: 8x2.5", 12x3.5" or 16x2.5
• Number of USB ports: 4  (1x front, 2x rear, 1x inside)
• Number of PCI-E slots: up to 8x PCIe Gen 4
• Maximum number of power supplies: 2
• Supported power supplies: 700W, 800W, 1100W, 1400W, 1800W, 2400W or 2800W
• Remote management: iDRAC 9
• Supported internal RAID controllers: H745, HBA355I, H345, H755, H755N, S150 and BOSS cards

Optional accessories for the R750 server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Together with the server it is possible to purchase the operating system

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• The server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day service contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

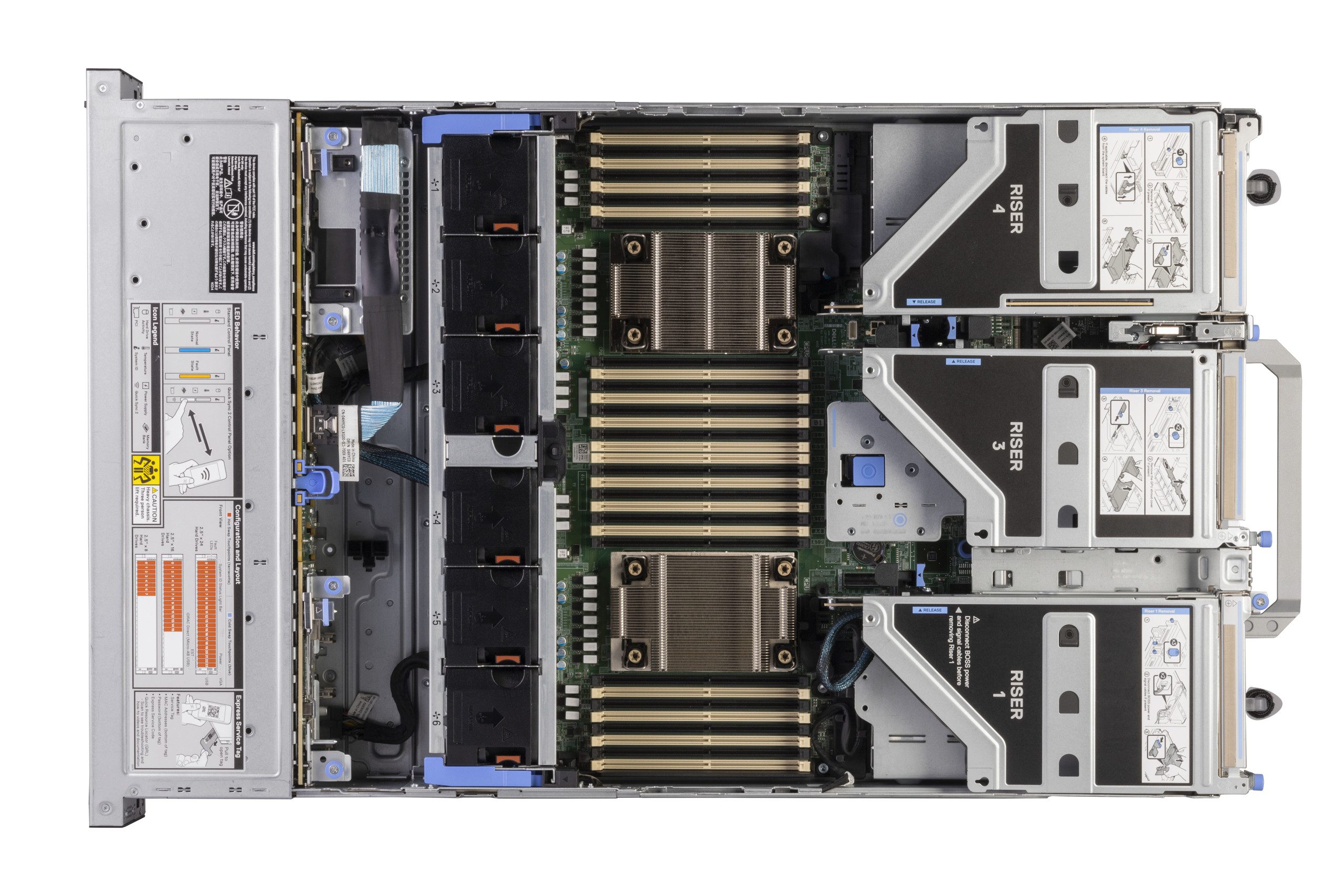

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.
